DC-4000 Gauge For Thickness Testing of Fibreglass & Composites

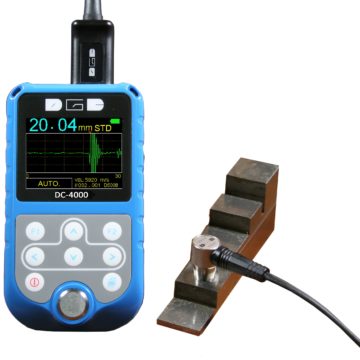

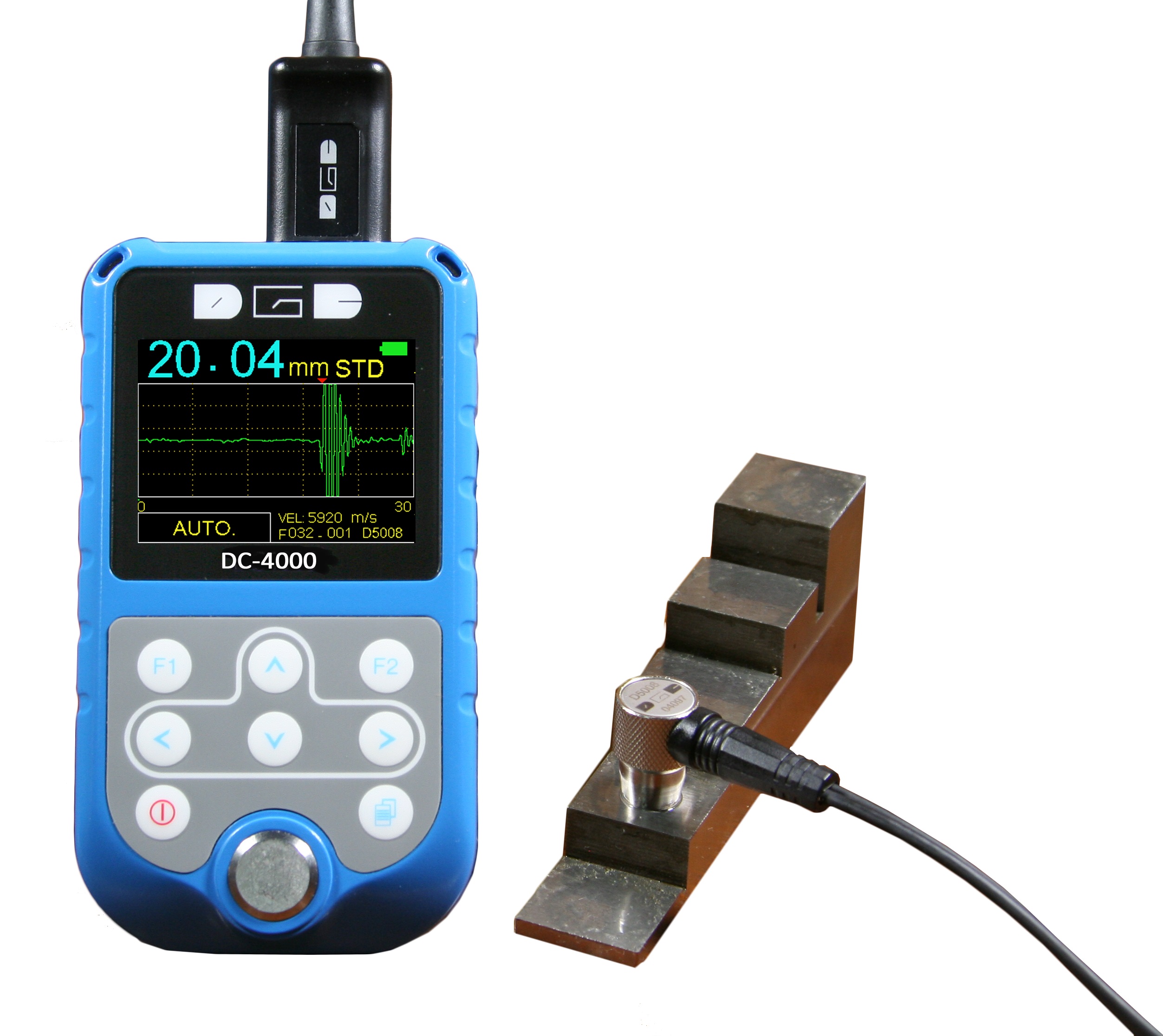

DC-4000 UT Gauge

We frequently receive requests for a cost-effective ultrasonic gauge and probe combination that can reliably measure the thickness of fibreglass. Our UT specialist recently took up the challenge and has sourced a gauge that meets this criteria!

The DC-4000 Gauge can be set up to reliably and consistently measure gel coated fibreglass, when coupled with the D1025 Probe. We have tested this on samples from 3 mm to 20 mm and are delighted with the results.

Features:

  • 320 x 240 TFT colour screen.
  • Pulse-echo and echo-echo mode (thru paint).
  • A scan and B scan display.
  • Auto probe zero calibration.
  • Auto probe identification.
  • Adjustable settings for range, gain, delay, gate, blank and E-blank.
  • Display resolution: 01 mm/0.001″.
  • Range in steel: 65-400 mm in pulse-echo mode, 3.00-25.0 mm in echo-echo mode.
  • Memory: 10,000 readings in 100 files.
  • USB output.

For further information, please email:  ndt@ndt.com.au
