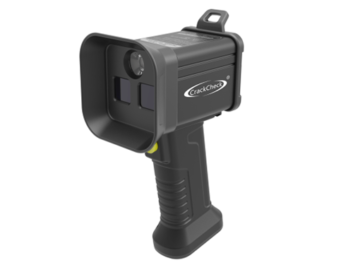

CrackCheck SPIRIT SERIES PORTABLE LED UV LAMP

The Spirit Series Handheld LED UV Lamp (ST-30) utilizes the state-of-the-art LED technology and makes it a great tool for fluorescent Magnetic Testing, Penetrant Testing and Leak Detection, as well as its intrinsically safe mechanical and electrical design, making it perfect tool for inspection conditions with explosion proof requirements.

Description

The Spirit Series is popular for its explosion proof capability and supreme light and handy design for fluorescent inspection.  Safety and portability is the spirit for Spirit Series UV LED Lamp.  Two models are available:  ST-30 Battery and ST-30 Mains.  Both models consist of two high performance UV LEDs and one white light LED.

Spirit Features:

  • Compliance with all international standards and regulations e.g. ASTM E3022, RRES 90061, AITM6-1001.
  • Explosion proof certified per EU Directives.
  • Super light and handy design.
  • White light and UV light are easily switchable.
  • Power Supply:   Battery or Mains.
  • 100% solid state circuit ensuring working steadily in a strong magnetic field.
  • Safe and pure UV-A spectrum in the range of 365-370 nm with no UV-B  and UV-C.

Spirit Mains Model ST-30 Mains Part Number: 605003:

  • LED Source:  2 x UV-LEDs, 1 x White Light LED.
  • Wavelength:  Certified 365-370 nm.
  • UVA Intensity at 15″(380 mm):  ∼4,000 uw/cm².
  • Coverage Area at 15″(380 mm):  >1000 uw/cm² ˜ at 160 mm.
  • Compliance:  ASTM E 3022, ISO 3059, RRES 90061, NADCAP, AITM6-1001.
  • UVB/UVC:  0.
  • Visible Light:  < 5 Lux (0.5 ft-candle).
  • Dimensions:  82 mm x 112 mm x 200 mm.
  • Weight:  550 grams (1.2 lbs) without batteries.  640 grams (1.5 lbs) with batteries.
  • Operating Voltage: 12 V DC.
  • Power Supply:  100-240 V AC, 50/60 Hz for mains version.  2 x 3.7 V lithium batteries (Type 18650) for battery version.
  • Running Time:  ∼ Three hours.
  • Battery Life:  ˜ 1,000 charging cycles.

Spirit Battery Model ST-30 Battery Part Number: 605004:

  • LED Source:  2 x UV-LEDs, 1 x White Light LED.
  • Wavelength:  Certified 365-370 nm.
  • UVA Intensity at 15″(380 mm):  ∼4,000 uw/cm².
  • Coverage Area at 15″(380 mm):  >1000 uw/cm² ˜ up to 160 mm.
  • Compliance:  ASTM E 3022, ISO 3059, RRES 90061, NADCAP, AITM6-1001.
  • UVB/UVC:  0.
  • Visible Light:  < 5 Lux (0.5 ft-candle).
  • Dimensions:  82 mm x 112 mm x 200 mm.
  • Weight:  550 grams (1.2 lbs) without batteries.  640 grams (1.5 lbs) with batteries.
  • Operating Voltage: 12 V DC.
  • Power Supply:  100-240 V AC, 50/60 Hz for mains version.  2 x 3.7 V lithium batteries (Type 18650) for battery version.
  • Running Time:  ∼ Three hours.
  • Battery Life:  ˜ 1,000 charging cycles.

Spirit Series Certification:  CE, RoHS, Ex.

Spirit Package consists of LED UV Lamp, Industrial Standard Power Adapter for Mains Version, Battery Charger for Battery Version, Screw Driver for Battery Version, Four Rechargeable Batteries for Battery Version, Carrying Case.

For further information, please email:  ndt@ndt.com.au
