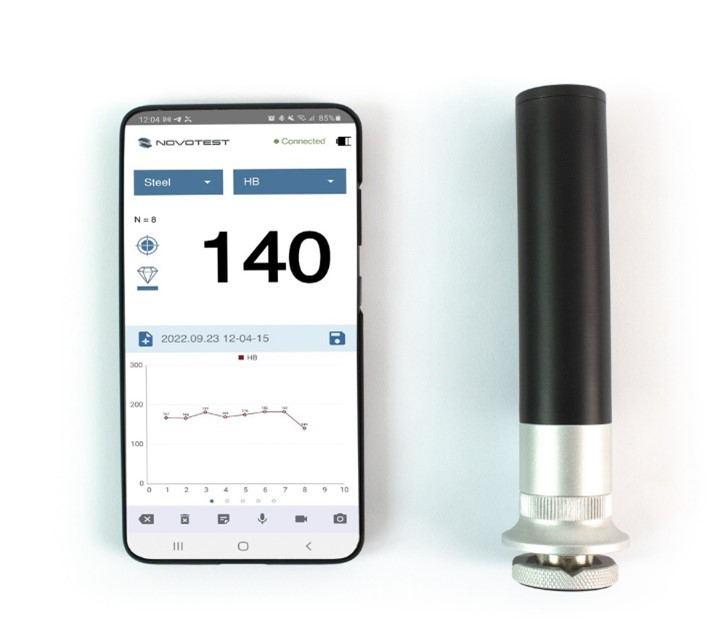

Wireless Hardness Tester NOVOTEST UCI Lab

The NOVOTEST Lab UCI wireless hardness tester implements the ultrasonic contact impedance method.

The users of NOVOTEST Lab UCI get the following advantages:

Ultra-portable device for quick hardness testing anywhere (autonomous continuous operation up to 20 hours),

Multifunctional application NOVOTEST Lab with a user-friendly interface and cloud archive.

The NOVOTEST Lab app allows users to:

– set up and calibrate the device.

– to get illustrations of measurements as graphs, histograms, and statistics.

– save measurements with text-, audio-, photo- and even videos protocols.

– transfer the protocol in one click by any convenient messenger or e-mail.

– synchronize archive with cloud storage.

ADVANTAGES:

WIDE APPLICATION (testing of hardened layers and complex-shaped products),
SPECIAL NOZZLE (special nozzles helps test radius surfaces and get accurate measurements),
CALIBRATION FOR ANY METAL (pre-set calibrations for steel, aluminium, and brass, or users defined),
HIGH AUTONOMY (device charges from any USB 5V port),
ULTRAPORTABLE (can be used in the fields, workshop, laboratories, metal depots and anywhere),
CROSS-PLATFORM ARCHIVE MANAGEMENT.

FEATURES:

Measuring range HRC:20~70, HB:90~650, HV:230~940, Tensile strength, MPa: 370~1740

Scales HRC, HB, HV, HRA, HRB, MPA and can be calibrated for any other.

Materials Steel, aluminium, brass and can be calibrated for any other material.

Weight 170g

Dimensions 160*26 (36 with nozzle) mm

Battery life 48 hrs

Power supply / Charging Built-in battery / USB 5V

Operating environment Temperature: -30°C~60°CHumidity: 30%~80%

STANDARD PACKAGE:

Hardness tester, Special nozzle, Software, USB cable, Operating manual, Case
