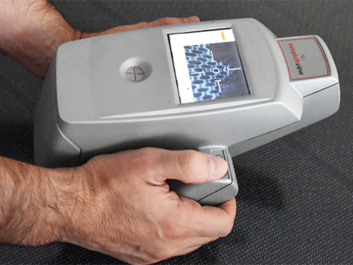

TESTIA SCRATCHVIEW SCRATCH MEASUREMENT SYSTEM

  • Low cost : inexpensive to purchase and in operation.
  • Easy: fast handling – very short training – no preliminary adjustment.



Description

The Easiest Way to Measure Scratches.



TESTIA ScratchView is referenced into Airbus Procedures: A320 NTM 53-00-01 (Airbus).

Features:



  • Ergonomic: only 4 control buttons – perfect fit and comfort.
  • Easy: fast handling – very short training – no preliminary adjustment.
  • Autonomous, wireless, light weight: ready for any kind of inspection.
  • Scratch depth and width are automatically calculated within a few seconds: – no extra computer necessary.
  • Reliable, repeatable and operator independent.
  • Safe: laser class 2, compatible with mass market regulations.
  • Low cost : inexpensive at purchase and in operation.

Measurement Range:



  • 0.02 mm < Depth < 1 mm.
  • For 0.02 mm < Depth < 0.05 mm, accuracy: ± 0.005 mm.
  • For 0.05 mm < Depth < 1 mm, accuracy ± 10%.
  • 0.03 mm < Width  2 mm.
  • Weight:  1.7 kg.
  • External USB port for data saving and reporting.
  • Autonomy: 6 h.

For further information, please email: ndt@ndt.com.au
