IOW BEAM PROFILE SENSITIVITY BLOCK

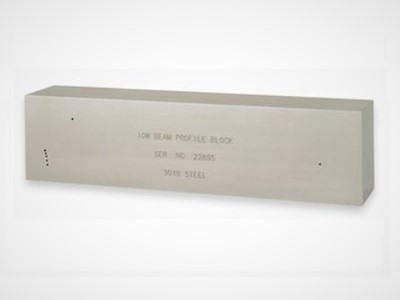

AS2083 IOW TYPE 2 BEAM PROFILE SENSITIVITY BLOCK

Used for Beam Profile determination (Beam Spread) and Sensitivity Setting off 1.5 mm diameter x 22 mm deep drill holes at various Beam Path Lengths (BPL).

Product Description

Additional to the Type 2 Block are five closely positioned 1.5 mm drill holes for shear wave probe resolution determination.

Dimensions: 305 mm x 75 mm x 50 mm.  Available in A1018 Carbon Steel, 304 Stainless Steel and Aluminium.

The block is standard with Certificate of Conformity and Carrying Case.

For further information please email:  ndt@ndt.com.au
