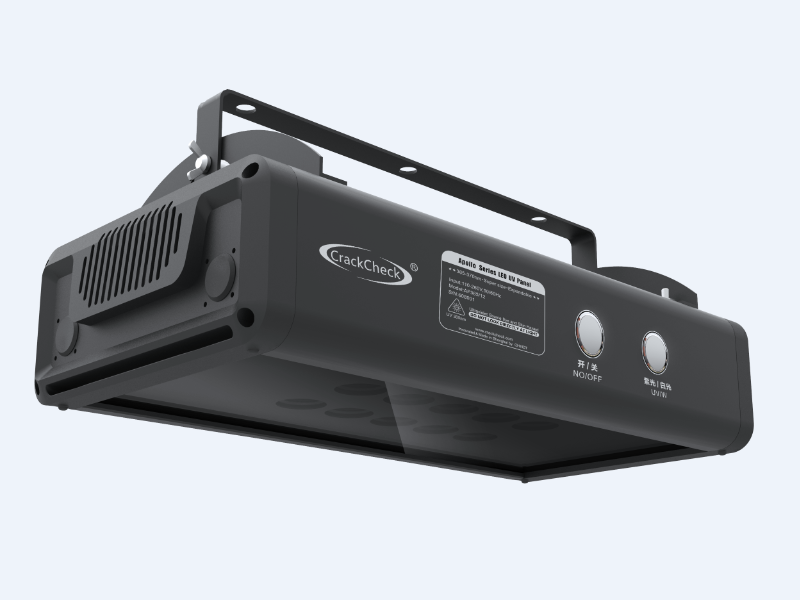

CrackCheck APOLLO365 SERIES MODULE-BASED UV LED PANEL

The CrackCheck Apollo365 Series LED Overhead/Panel UV Light has two versions i.e.  The Apollo 365-L (Part No: 608001) and the Apollo365-XL (Part No: 608002)..

Description

Features:

  • Instant maximum output without pre-heating.
  • Switch function between UV light and white light.
  • LED module-based design with excellent maintainability.
  • Safe and pure UV-A centering at 365 nm.
  • UV Filter ensuring visible light less than 5 Lux.
  • Horizontally and longitudinally expandable with standard connectors.
  • 100% solid state circuit ensures proper working in a strong magnetic field.

Apollo365-L LED Module-Based Large Coverage LED Panel:



The Apollo365-L overhead panel utilizes state-of-the-art LED technology which makes it a great tool for Fluorescent Magnetic Testing, Penetrant Testing and Leak Detection.  This standard version consists of 8 x UV LEDs and 2 x white LEDs ensuring high UV intensity and large coverage.  Made of aviation grade aluminum alloy, Apollo365/L will endure the harshest working conditions.  Apollo365/L has a rugged design, excellent cooling ability and is waterproof and dust-proof. The unique feature of Apollo365/L is its module-based design with an illumination area of up to 540 x 520 mm.

Each LED of Apollo365/L is encapsulated as an independent unit, – ATOM™ .ATOM™ Flood and ATOM™ Spot are interchangeable and can be installed on the same board which offers a combination of UV intensity and coverage area to meet specific inspection demands.  The electrical board is 5-level adjustable, offering more intensity possibilities. The UV intensity is designed up to 10,000 uw/cm² at 38 cm.

Technical Data:

  • LED Source:  8 x UV LEDs and 2 x White LEDs.
  • Wavelength:  365-370 nm.
  • Dimensions: 400 x 200 x 86 mm.
  • Coverage:  540 x 520 mm (at 38 cm).
  • Visible Light:  <5 Lux.
  • Weight:  4.5 kgs.
  • Power Input:  170-260 Volts, 50/60 Hz.
  • Power Output: 24 Volts, 5 Amps.
  • Rated Power:  UV-A 4W.
  • UV Intensity:  3500-4600 µw/cm².
  • Certification:  Ce, RoHs, iso 9001.
  • Complies:  ASTM E3022, ASTM E1417, ASTM E1444, E2297,

Apollo365-XL Module-Based Super Large Coverage:



Apollo365/XL overhead panel utilizes state-of-the-art LED technology which makes it a great tool for Fluorescent Magnetic Testing, Penetrant Testing and Leak Detection.  The standard version consists of 16 x UV LEDs and 4 x white LEDs, ensuring high UV intensity and large coverage.  Made of aviation grade aluminium alloy, Apollo365/XL will endure the harshest working conditions.  It has a rugged design, excellent cooling ability, and is water-proof and dust-proof. The unique feature of Apollo365/XL is its module-based design with an illumination area of up to 730 x 520 mm.

Each LED of Apollo365/XL is encapsulated as an independent unit – ATOM™ .ATOM™ Flood and ATOM™ Spot are interchangeable and can be installed on the same board which offers more combination of UV intensity and coverage area to meet specific inspection demands.   The electrical board is 5-level adjustable offering more intensity possibilities.

Technical Data:

  • LED Source:  16 x UV LEDs and 4 x White LEDs.
  • Wavelength:  365-370 nm.
  • Dimensions: 610 x 200 x 86 mm.
  • Coverage:  730 x 520 mm (at 38 cm)..
  • Visible Light:  <5 Lux.
  • Weight:  8 kgs.
  • Power Input:  170-260 Volts, 50/60 Hz.
  • Power Output: 24 Volts, 5 Amps.
  • Rated Power:  UV-A 4W 16.
  • UV Intensity:  4800-5700 µw/cm².
  • Certification:  Ce, RoHs, ISO 9001.
  • Complies:  ASTM E3022, ASTM E1417, ASTM E1444, E2297.

For further information, please email: ndt@ndt.com.au
