TWI Thermoscope 3 Advanced Thermography

Precision IR NDT for In-Service Inspection:

Portability for the field—that’s the driving force behind ThermoScope® II. Combining flash heating, image acquisition and analysis, this unit allows a single user to perform the inspection with ease and simplicity.

Description

Precision IR NDT for In-Service Inspection:

Portability for the field—that’s the driving force behind ThermoScope® 3. Combining flash heating, image acquisition and analysis, this unit allows a single user to perform the inspection with ease and simplicity.  ThermoScope 3 uses patented MOSAIQ® software with Thermographic Signal Reconstruction (TSR®) processing to provide an unprecedented degree of clarity, penetration depth and resolution for applications in the field.

The ThermoScope 3 Advantage:

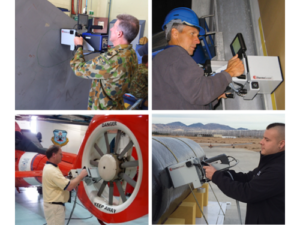

ThermoScope puts the entire thermographic toolkit into a portable form factor, enabling the operator to perform inspections where the part is. Push button controls and an easy to read LCD display simplify the inspection process.

  • Fast/Real Time Inspection.
  • Single Operator / Easy to Use.
  • Patented TSR Processing.
  • Low Cost.
  • Safe.
  • Non-Contact.
  • Environmentally Friendly.
  • Single Side Access.
  • Lightweight.
  • Reliable & Repeatable.
  • Wide Area.
  • A Complete NDT Solution.

Features:

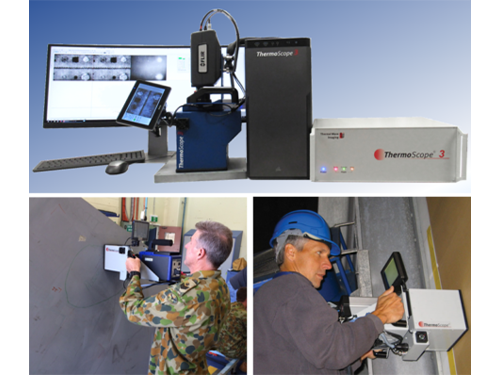

The ThermoScope combines flash heating, image acquisition and analysis in a truly portable system. The ThermoScope system offers the following essential features:

  • Simple operation with interactive display.
  • Automatic inspection routines for on-the-spot decisions.
  • Compatible with leading IR cameras.
  • Integrated with TWI’s MOSAIQ and EchoTherm Software.
  • Applications include:  de-lamination, FOD, adhesion, corrosion, water ingress and impact damage.

Thermal Wave Imaging

For further information please email: ndt@ndt.com.au
