THE LIXI PROFILER BY NDT

NDT Equipment Sales

Description

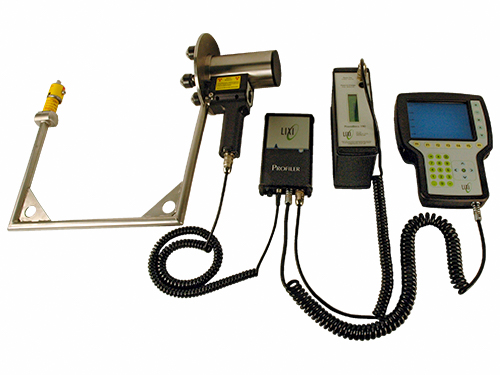

The Lixi Profiler utilises a Gadolinium-153 isotope, engineered detection technology. It also includes proprietary software. The device provides the non-destructive testing (NDT) community with a unique tool for pipe inspection. It is hand-held, easy to learn, and simple to operate during testing.

The mechanism works with dual output/input devices. These work in tandem and are run over the outside of the pipe, without touching it to provide a profile of any pipe damage or objects blocking the pipe. Data is displayed on a handheld reader attached to the Profiler. Watch the video below to observe the Lixi Profiler in action.

The unique combination of technology and packaging included in the Lixi Profiler help perform pipe inspection work with ease. No costly and messy removal and replacement of insulation. No need to cut a test hole and clean and prep the pipe surface because the Profiler is used with the insulation in place.

No time and expense spent dealing with film – results for the Lixi Profiler are available immediately. No roping off the work area for radiation safety – the Profiler utilises Gadolinium 153, a relatively low energy source. No wondering if the spot tests you ran caught the problem because of the high quality data standards.

The Profiler can be used on all of the pipe, not just in spot areas. The Lixi Profiler allows inspection to be done faster, more completely, and more cost-effectively than any other method. Contact us with any questions about the Lixi Profiler or to place an order. We ship our NDT equipment all across Australia and are available Monday to Friday, 7:30-4:00pm.

Industries:

  • Oil & Gas Refineries
  • Chemical Production
  • Power Generation
  • Food Processing
  • Paper Manufacturing
  • Mining
  • Pharmaceutical
  • Manufacturing
  • Aerospace

Applications:

  • Pipe Wall thinning
  • Weld location
  • Pipe blockages
  • Integrity in ammonia systems
  • Inspection of wood, rubber and composite materials

Specifications:

  • Weight:  4.5 kgs
  • Various size openings
  • 12V DC
  • Battery Life: 8 hours
  • T-head source holder
  • Conforms to NRC

For further information please email: ndt@ndt.com.au
