REFERENCE RADIOGRAPHS E446 FOR STEEL CASTINGS

Reference Radiographs are Non Destructive Testing Standards universally accepted because of their high reliability in accept-reject actions.  Reference Radiographs E446 for Steel Castings up to 2″ (51 mm) in Thickness, Vols 1, II & III + Active Standards.

Description

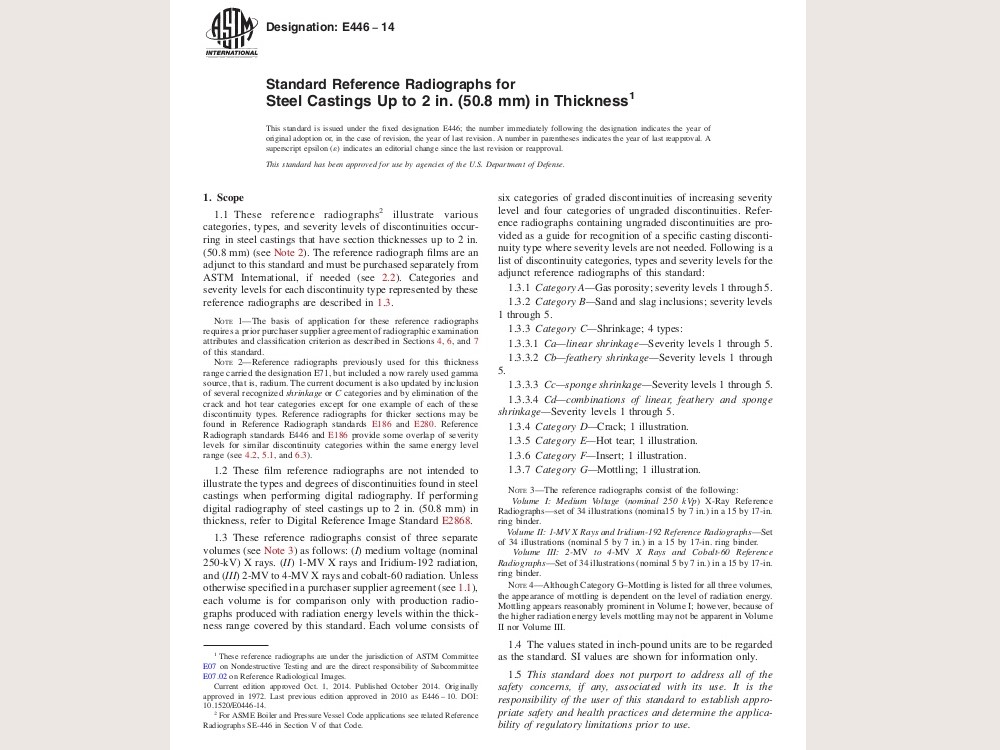

These Reference Radiographs illustrate various types and degrees of discontinuities occurring in steel castings that have section thicknesses up to 2″ (51 mm).  A copy of the ASTM Standard is included with the purchase of these Reference Standards.

The illustrations consist of the following:

  • RRE044601:  (Volume I): Medium Voltage (Nominal 250 kVp) X-Ray Reference Radiographs – Set of 34 illustrations (5 x 7″) in a 15″ x 17″ ring binder.
  • RRE044602: (Volume II): 1-MV X-Rays and Iridium-192 Reference Radiographs – Set of 34 illustrations (5″ x 7″) in a 15″ x 17″ ring binder.
  • RRE044603: (Volume III): 2-MV to 4-MV X-Rays and Cobalt-60 Reference Radiographs – Set of 34 illustrations (5″ x 7″) in a 15″ x 17″ ring binder.

Note: E155 Volumes, 1, II and III Reference Radiographs are available as digital reference images with the designation E2868.

To purchase individual components, select item from below:

  • Reference Radiographs for E446 Steel Castings up to 2″ (51 mm) in Thickness – Volume III + Active Standard.
  • Reference Radiographs for E446 Steel Castings up to 2″ (51 mm) in Thickness – Volume I + Active Standard.
  • Reference Radiographs for E446 Steel Castings up to 2″ (51 mm) in Thickness – Volume II + Active Standard.

For further information, please email:  ndt@ndt.com.au
