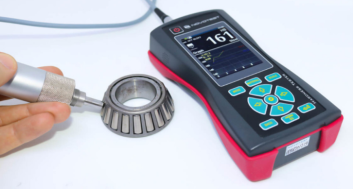

Combined Hardness Tester NOVOTEST T-UD3

Add to quote

Description

Combined Hardness Tester NOVOTEST T-UD3 combines two methods of measuring hardness by an indirect method: Ultrasonic Contact Impedance (ASTM A1038) and Leeb (ASTM A956). This makes the device the most versatile portable device in the world.  The ability to connect both probes combine the advantages of both methods and providing users the opportunity to use the one that is most suitable for solving a specific task. The Combined Hardness Tester NOVOTEST T-UD3 allows user to measure the hardness of any metals, parts of any shape and thickness, measure the hardness of the surface hardened layers and evaluate the tensile strength.  Do hardness measurements, calibrate the device, set up a convenient display of values, save the results of hardness measurements, synchronize the archive with your devices, PC, or smartphone (NOVOTEST app).

ADVANTAGES:

  1. ABILITY OF CONNECTING BOTH METHODS PROBES WITHOUT TURNING OFF THE DEVICE,
  2. SMALL PARTS MEASURING,
  3. COMPLEX SHAPE PRODUCTS MEASURING,
  4. SMALL IMPRINT OF UCI TYPE PROBE,
  5. MEASURING PARTS WITH BAD SURFACE,
  6. CALIBRATED FOR DIFFERENT MATERIALS AND SCALES.

FEATURES:

UCI probe types      – 1kgf (10N) 2.2 lbf – 5kgf (50N) 11lbf – 10kgf (98N) 22lbf

Leeb probe types    – D, DC, DL, C, D+15, E, G

Measuring range    – HRC:20~70, HB:90~650, HV:230~940, Tensile strength, MPa: 370~1740, User

Measuring accuracy – HRC: 2HRC, HB: 10HB, HV: 15HV

Standards                – ASTM A1038, ASTM A956, ASTM A370, ISO 16859, ASTM E140, ISO 18265, DIN 50159, GB/T 34205

Indenter                  – UCI probe – Diamond indenter & Leeb probe – Hardened ball

Measuring direction – Any direction 360°

Data storage           – Limited only by the memory card up to 32Gb

Communication      Upload data to PC and export as a spreadsheet (USB cable and software included)

Hardness scales      – UCI probe – HRC, HB, HV, MPa – Leeb probe – HRC, HRB, HB, HV, HL, MPa

Materials                 – Ultrasonic (UCI) probe – pre-calibrated for steel – Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminium, bronze, brass, copper.

Operating environment                         Temperature: -20°C~40°C / Humidity: 30%~80%R.H.

Power supply                                          DC 4,5V (3 pcs batteries AA)

Instrument dimensions                          160x75x30mm

Net weight                                              Approx. 0.3kg (without probe)

Gross weight (package)                          2kg

Package dimensions,                              33*27*10 cm

Battery life                                              Approx. 10 hours.

Warranty                                                 3 (1+2) years

Package gross weight                             1.8-2kg
