MFE Tankmaster Remote Visualisation Camera

Description

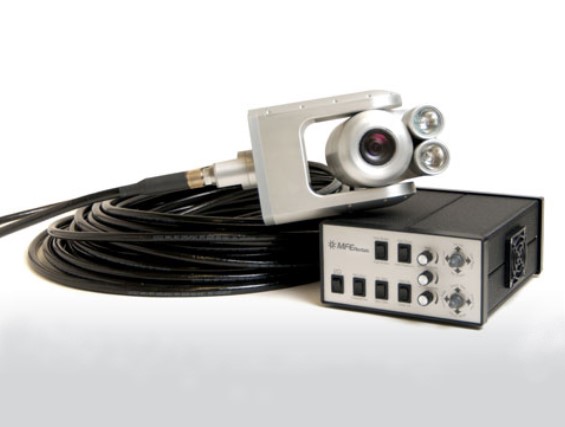

MFE TANKMASTER REMOTE VISUALISATION CAMERA

To inspect dark, wet tanks, vessels and pipes with limited access, reach for the TankMaster PTZ550 or TankMaster PTZ275. This next generation robotic camera from MFE Enterprises combines variable zoom video with multi-mode illumination. This is contained in one of the most compact pan/tilt packages available.

Features:

  • Wifi Capable to Android or IOS
  • Waterproof Polyurethane Cable, in lengths to 250 feet, tolerates abrasion, caustic chemical and tight bends
  • Sealed connector mates with simple twist
  • 360 degrees Camera Pan grants full circumferential view of vessel internals. Four select-able pan speeds enable moving inspection at varying zoom settings
  • Anodized Aluminium construction tolerates most chemicals. O-ring seals yield 100 feet submersion rating
  • 40:1 variable zoom fill monitor screen with small, distant objects
  • 1/4″ IT CCD (380,000 pixels) yields HTV resolution of 470 lines for exceptionally crisp video
  • +/- 100* camera tilt grants full view of vessel lid, walls and base
  • Spot and flood lamps (2 each) illuminate targets as far away as 8 ft or 40 ft in interline transfer mode

For further information please email: ndt@ndt.com.au
