Magnaflux Y2 Electromagnetic Yoke

NDT Equipment Sales

Description

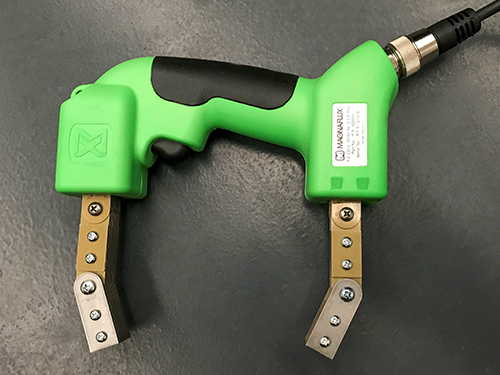

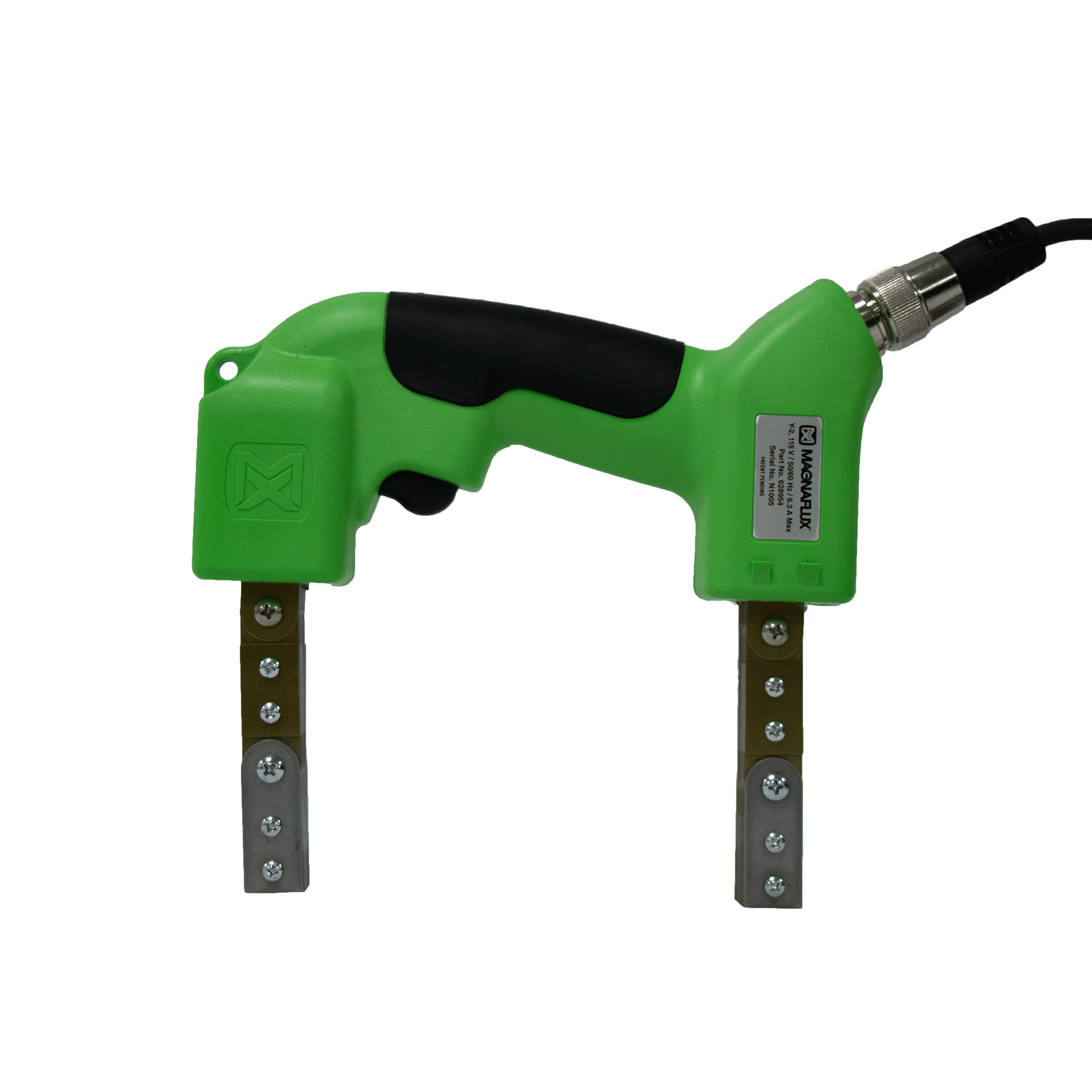

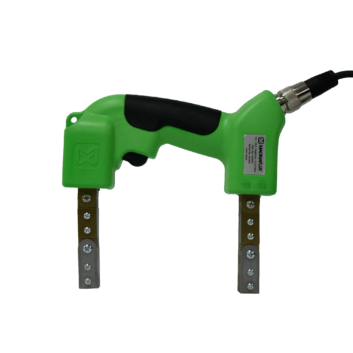

The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing. Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a replaceable cord and isolated trigger switch, the Y-2 is easily serviceable.

FEATURES:

  • Ergonomic, light-weight design
  • IP54 sealed housing resists dust and water
  • Field-replaceable power cord
  • Isolated, replaceable trigger switch
  • Steel shields for leg protection
  • Exceeds ASTM lifting specifications

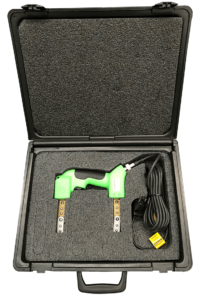

  • Convenient carrying case supplied with all yoke shipments
  • Optional LED yoke light

Keep tools in service with a design that’s built to last:

  • Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.
  • Prevent dust and dangerous water damage with an IP54 o-ring sealed housing.

Specifications:

  • 230 Volt.
  • 50/60 Hz.
  • Weight: 2.2 kg (Yoke only) 2.8 kg (with cord)
  • 50% Duty Cycle: max on time is 90 seconds.
  • Leg/Pole Span: 6.4 – 27 cm
  • Contact/Pole Size: 25 x 19 mm
  • Cord Length: 3.6 m, detachable

SPECIFICATION COMPLIANCE:  ASME BPVC • ASTM E709 • ASTM E1444 • ASTM E3024 • ISO 9934 • API 6A • AWS D1.1

For further information please email: ndt@ndt.com.au
