LTI-2100M

LTI-2100M COMPACT DIGITAL SHEAROGRAPHY CAMERA

Designed for fast and accurate non-destructive inspection of structures, components and repairs.

Product Description

The portable LTI-2100M features:

  • Compact, rugged shearography camera:  Lightweight and easy to use.
  • Exceptional shearography image quality:  12-bit hi-definition sensor and diffraction limited optics.
  • Powerful defect analysis tools:  Easily programmable image processing macros in LaserNDT 1.8.0 Software Suite for improved operator image analysis and reporting.
  • Versatile Camera:  Easily mounts to scan gantries, robots, crawlers, tripods, vacuum attachments and customer defined test configurations.
  • Test Configuration:  All Mode Operation: Thermal, Vacuum, Vibration and Pressure Stressing.
  • Options:  Test Part Stressing Systems, Test Chambers, Gantries, Workstations, Robotic Scanners and Lasers to 2 Watts.

Materials:

  • Carbon Fiber Laminate.
  • Metal Honeycomb.
  • Foam Cores.
  • Composites.
  • Metal-Metal Bonds.
  • COPV.

Industries:

  • Aerospace.
  • Wind Power.
  • Marine.
  • Rail.
  • Automotive.

Defect, Measure and Locate:

  • Delaminations.
  • Disbonds.
  • Impact damage.
  • Repair defects.
  • Porosity.
  • Cracks.
  • Fiber waves or wrinkles.

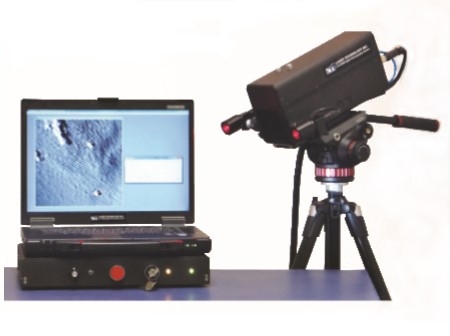

System includes:  Shear camera with a built-in 100 mw laser light source (Class IIIa), image processing computer, inter connect cables, tripod, transit case and Operator and Applications Manual.

Optional equipment:  Thermal Stress Systems TES-50 (500W) or TES-200 (2kW) with software control and adjustable radiant beam spread.

Laser Shearography Certifications:  AIA NAS 410, ASNT SNT-TC-1A, ASTM E2581-07 EN4179.

For further information, please email:  ndt@ndt.com.au
