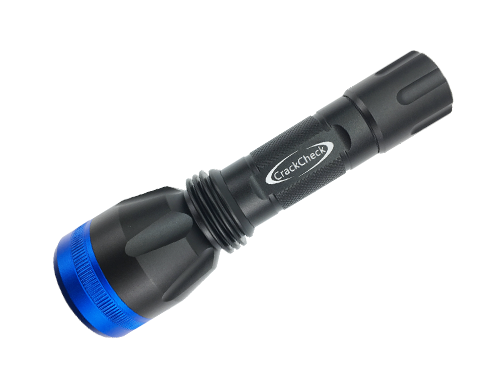

CrackCheck 365 LED UV TORCH

The CrackCheck Torch365 LED UV Torch is a Portable and Durable Spot Model and Flood Model.  This torch utilizes the state-of-the-art LED technology which makes it a great tool for fluorescent Magnetic Testing, Penetrant Testing and leak detection.  Manufactured with aviation grade aluminium alloy, Torch365 highlights its excellent cooling ability, robustness, optimum handy design and superlight weight.

Description

Two versions are available:  UV Torch Spot Light (TH365/SL) and UV Torch Flood Light (TH365/FL).  The light reflectors are interchangeable for both models.

Torch365 Features:

  • Instant maximum output without pre-heating.
  • Rugged, extremely light and handy design.
  • Powered by one rechargeable lithium-ion battery with large capacity.
  • Anodised aluminium lamp body minimizes corrosion and stands up to years of heavy duty.
  • The intensity of spotlight version Torch365/SS is 20,000 uW/cm² and floodlight version of 6,000 uW/cm² at 15″ (38 cm).
  • Compatible with spray can holder and tripod.
  • Each lamp comes with a certificate of compliance for both output and wavelength measurements.
  • 100% solid state circuit ensuring working steadily in strong magnetic field.
  • Safe and pure UV-A spectrum in the range of 365-370 nm with no UV-B and UV-C.

Torch365 Specifications:

  • LED Source:  1 UV-LED.
  • Wavelength:  Certified 365-370 nm.
  • UVA Intensity at 15″ (380 mm):  ∼ 20,000 uw/cm².
  • Coverage Area at 15″ (380 mm): >1000 uw/cm²:  ∼ at 50 mm.
  • Compliance:  ASTM E 3022, ISO 3059.
  • UVB/UVC:  0.
  • Visible Light:  < 5 Lux (0.5 ft-candle).
  • Dimensions:  150 mm* at 40 mm.
  • Weight:  200 grams (0.44 lbs) with batteries.
  • Operating Voltage: 5 VDC.
  • Power Supply:  Torch365 holds 1 x 3.7V lithium battery (Type 18650) with an additional 3 x spare batteries in the kit.
  • Charging Time:  ∼ 2 hours.
  • Battery Life:  ∼ 1,000 charging cycles.
  • Certification:  CE, RoHS, Ex*.
  • A special Explosion proof certified model: KK-6000 with Ex can be manufactured on request.  Standard models are not explosion proof.

The Torch is sold complete with, UV Shield Glasses, Battery Charger, 2 x Rechargeable Batteries and Carrying Case.
