CrackCheck JAGUAR SERIES HANDS-FREE LED UV LAMP

CrackCheck Jaguar 365 Series LED UV Lamp features two powerful UV-A (365 nm) LEDs and white light LEDs to quickly switch between fluorescent inspection and flaw location. Ideal for fluorescent magnetic particle and penetrant testing, pipeline inspections, ship hull inspections and any environment that requires a portable, hands-free inspection lamp.

Description

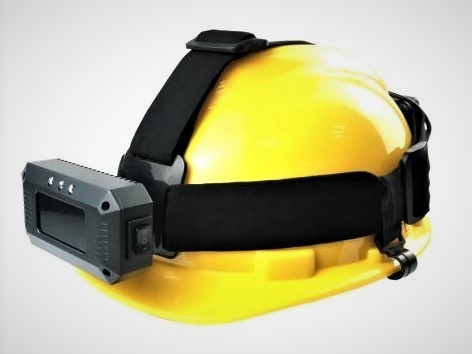

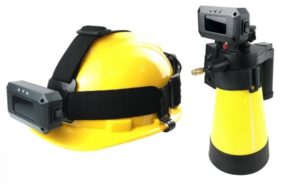

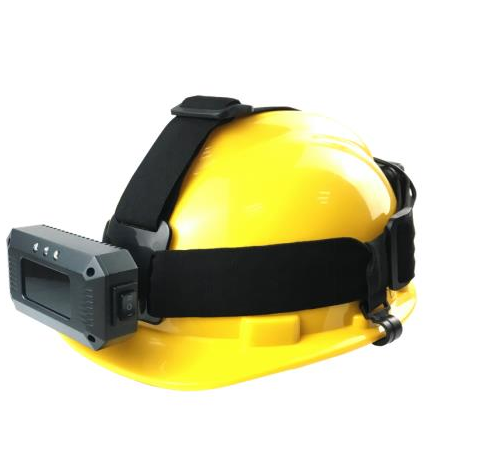

Two versions are available: The headlight version (JG365/H) and spray bottle version (JG365/S).  The Jaguar Headlight can be placed directly on the users head or be mounted on a safety helmet.  The Jaguar spray bottle light is mounted on a customized spray bottle with manual pressurizing.

Jaguar Features:

  • 100% solid state circuit ensuring working steadily in a strong magnetic field.
  • Safe and pure UV-A spectrum in the range of 365-370 nm with no UV-B and UV-C.
  • Switch function between UV light and White light.
  • Powered by a rechargeable lithium-ion battery (included).
  • Unique mechanical cooling system keeps LEDs cool to maintain optimum light output during extended use.
  • Two models are available:  headlight and spray bottle lamp.
  • First choice for fluorescent inspection, leading test, biological polymerization and oil detection.



Jaguar 365/Headlight Specifications*:

  • Model: JG365/H.  Part Number:  604001.
  • UV intensity at 15″ (380 mm): 4000µw/cm2@15″ (380 mm).
  • Coverage Area at 15″ (380 mm): > 1000µW/cm²: ∼180*160 mm.
  • LED Source: 2 x UV-LEDs, 3 x white light LEDs.
  • Wavelength:  Certified 365-370 nm.
  • Compliance:  ASTM E3022, ISO 3059, RRES 90061, NADCAP, AITM6-1001, ASTM E1444, ASTM E1417, ASTM E1444, ASTM E2297.
  • UVB/UVC:  0.
  • Visible Light:  < 5 Lux (0.5 ft -candle).
  • Dimensions:  100*50*25 mm.
  • Weight:  290 grams (including two batteries).
  • Operating Voltage:  8 VDC.
  • Power Supply:  2 * 3.7 V lithium batteries (Type 18650).
  • Charging Time:  ∼ 2 hours.
  • Battery Life:  ∼ 1,000 charging cycles.
  • Certification:  CE, RoHS, Ex*.
  • Equipped with black light filter.

*Please note:  The safety helmet is not included.

Jaguar 365/S Spray Bottle Lamp Specifications:

  • Model: JG365/S.  Part Number:  604002.
  • LED Source: 2 x UV-LEDs, 3 x white light LEDs.
  • Wavelength:  Certified 365-370 nm.
  • UV-A Intensity at 15″ (380 mm):  4500µw/cm².
  • Coverage Area at 15″ (380 mm): > 1000µw/cm²: ∼180*160 mm.
  • Compliance: ASTM E3022, ISO 3059, RRES 90061, NADCAP, AITM6-1001, ASTM E1444, ASTM E1417, ASTM E1444, ASTM E2297.
  • UVB/UVC:  0.
  • Visible Light: < 5 Lux (0.5 ft-candle).
  • Dimensions:  100*50*25 mm.
  • Weight:  470 grams (including 4 batteries).
  • Operating Voltage:  8 VDC.
  • Power Supply:  4* 3.7 V lithium batteries (Type 18650).
  • Charging Time:  ∼ 2 hours.
  • Battery Life:  ∼ 1,000 charging cycles.
  • Certification:  CE, RoHS, Ex*
  • Spray bottle is included.
  • Equipped with black light filter.

For further information, please email:  ndt@ndt.com.au.
