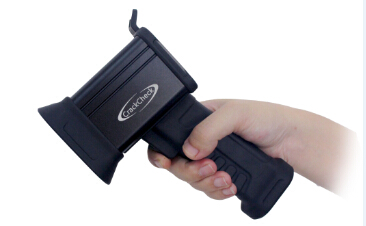

CrackCheck SPIRIT SERIES PORTABLE LED UV LAMP

The Spirit Series Handheld LED UV Lamp (St-30) utilizes state-of-the-art LED technology, as well as the lamps intrinsically safe mechanical and electrical design, which makes it the perfect tool for inspection conditions where the lamp is required to be intrinsically safe.

Description

The Spirit Series is popular for its explosion proof capability (Model ST-30 Battery) and supreme light and handy design for fluorescent inspection  Safety and portability is the spirit for the Spirit Series UV LED Lamp.  Two models are available: ST-30 Battery and ST-30 Mains.  Both models consist of two high performance UV LEDs and one white light LED.

CrackCheck Spirit Features:



  • Compliance with all international standards and regulations e.g. ASTM E 3022, RRES 90061, AITM6-1001.
  • Explosion proof certified per EU Directives.
  • Super light and handy design.
  • White light and UV Light are easily switchable.
  • Power Supply:  Battery or Mains.
  • 100% solid state circuit ensuring working steadily in strong magnetic field.
  • Safe and pure UV-A spectrum in the range of 365-370 nm with no UV-B and UV-C.

CrackCheck Spirit Specifications:



CrackCheck Spirit Mains Model ST-30 Mains, Part Number: 605003:

  • LED Source:  2 x UV-LEDs, 1 x white light LED.
  • Wavelength:  Certified 365-370 nm.
  • UVA Intensity at 15″ (380 mm):  ˜ 4,000 uw/cm².
  • Coverage Area at 15″ (380 mm):  > 1000 uw/cm²: ˜ at 160 mm.
  • Compliance:  ASTM E 3022, ISO 3059, RRES 90061, NADCAP, AITM6-1001.
  • UVB/UVC:  0.
  • Visible Light:  < 5 Lux (0.5 ft-candle).
  • Dimensions:  82 mm x 112 mm x 200 mm.
  • Weight:  550 grams (1.2 lbs) without batteries.  640 grams (1.5 lbs) with batteries.
  • Operating Voltage:  12V DC.
  • Power Supply:  100-240 V AC, 50/60 Hz for mains version.  2 x 3.7 V lithium batteries (Type 18650) for battery version.
  • Running Time:  ˜ 3 hours.
  • Battery Life:  ˜ 1,000 charging cycles.
  • Certification: Ce, RoHS.

CrackCheck  Spirit Mains Explosion Proof, Model ST-30 Battery, Part Number:  605004:

  • LED Source:  2 x UV-LEDs, 1 x white light LED.
  • Wavelength:  Certified 365-370 nm.
  • UVA Intensity at 15″ (380 mm):  ˜ 4,000 uw/cm².
  • Coverage Area at 15″ (380 mm):  > 1000 uw/cm²: ˜ at 160 mm.
  • Compliance:  ASTM E 3022, ISO 3059, RRES 90061, NADCAP, AITM6-1001.
  • UVB/UVC:  0.
  • Visible Light:  < 5 Lux (0.5 ft-candle).
  • Dimensions:  82 mm x 112 mm x 200 mm.
  • Weight:  550 grams (1.2 lbs) without batteries.  640 grams (1.5 lbs) with batteries.
  • Operating Voltage:  12V DC.
  • Power Supply:  100-240 V AC, 50/60 Hz for mains version.  2 x 3.7 V lithium batteries (Type 18650) for battery version.
  • Running Time:  ˜ 3 hours.
  • Battery Life:  ˜ 1,000 charging cycles.
  • Certification:  CE, RoHS.

Complete package includes:  Spirit Lamp, Industrial Standard Power Adapter (Mains Version), Battery Charger (Battery Version), Screw Driver (Battery Version), 4 x Rechargeable Batteries (Battery Version), Plastic Safety Box and UV Protective Glasses (in Battery Version).

For further information, please email:  ndt@ndt.com.au
