Tritex NDT Multigauge 3000

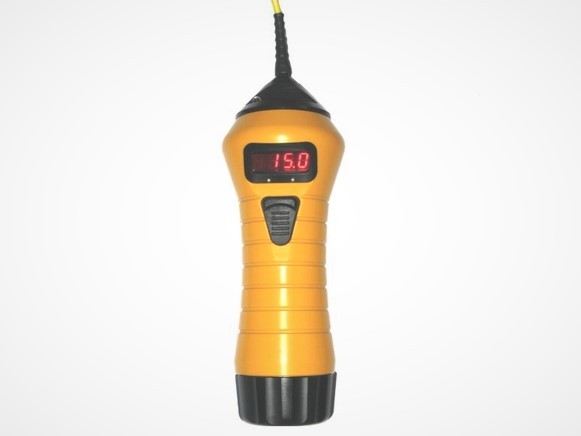

Tritex NDT MULTIGAUGE 3000 UNDERWATER THICKNESS GAUGE

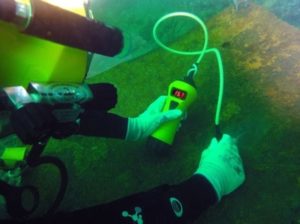

The Multigauge 3000 Underwater Thickness Meter is designed to be used by a diver for most common underwater thickness gauging applications. It is a simple, robust, hand held meter which uses Multiple Echo to ignore coatings, measuring only the remaining metal thickness.

Product Description

The Multigauge 3000 Underwater Thickness Gauge is a simple, robust ultrasonic thickness gauge designed for most common underwater thickness gauging applications. The gauge is pressure tested to 500 M and has the option to transfer measurements to a surface display unit with the simple addition of a replacement end cap. It has been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide.

The gauge uses multiple echo which means measurements can easily be taken without the need to remove coatings and the large bright LED display ensures the display can be seen by the diver, even in poor visibility. The gauge is equipped with IPR (Intelligent Probe Recognition) which automatically adjusts settings in the gauge for enhanced performance and AMVS (Automatic Measurement Verification System) to ensure only true measurements are displayed, even on the most heavily corroded metals.

The Multigauge 3000 has been manufactured to comply with British Standard BS EN 15317:2007, which covers the characterisation and verification of ultrasonic thickness measuring equipment.

Features:

  • Intelligent Probe Recognition (IPR).
  • Automatic Measurement Verification (AMVS).
  • Ignores coatings up to 6 mm thick using multiple echo and up to 20 mm with Coating Plus+ selected.
  • Integral battery with 55 hour run time on one fast charge. No need for a spare battery.
  • Rugged, durable and robust.
  • No fuss upgrade option to a topside repeater.
  • No zeroing required.
  • Large 10 mm display for good visibility in poor visibility applications
  • Easy to use.
  • Pressure tested to 500 M.
  • Hand held gauge for ease of use.
  • Easy calibration with menu driven buttons.

Kit Contents:

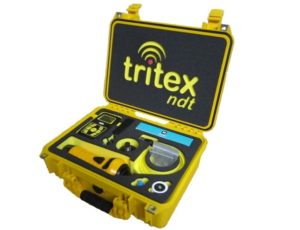

Multigauge 3000 Underwater Thickness Meter with integral battery, standard 2.25 Mhz 13 mm probe, spare membranes, membrane oil, 15 mm test block, membrane key, spare ‘O’ rings, Molykote grease, nose cone release bar, battery charger with appropriate power lead, manual, calibration certificate and Pelican carry case. Gauge supplied ready to use out of the box.

The Multigauge 3000 has been manufactured to comply with British Standard BS EN 15317:2007, which covers the characterisation and verification of ultrasonic thickness measuring equipment.

For further information please email: ndt@ndt.com.au

Additional Information

Weight 1 kg
