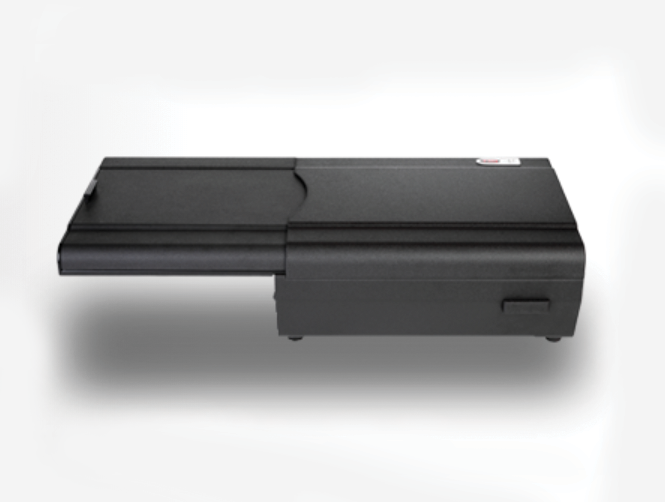

VMI’s latest version of VMI’s flagship CR, the 5100MS-C, has been completely redesigned with state-of-the art optics, combining 25-micron resolution with 16-bit (65,536 shades of gray) logarithmic image acquisition.  The 5100MS-C produces the highest signal-to-noise ratio on the market, surpassing the most stringent codes and standards.


VMI’s unique scanning technology provides unmatched Imaging Phosphor (IP) Plate life.  The 5100MS-C can scan any combination of imaging plates within a 14″ x 17″ scan area; utilizing either rigid or flexible cassettes.  Finally a digital solution that can be considered a true film replacement.

Logarithmic Image Acquisition Process:

  • The highest Signal-to-Noise Ratio in the industry..

25 Micron Scanning:

  • High resolution image acquisition for fine detail.
  • Compliant to all major international codes and standards.

Flatbed Scanning Design:

  • Precise single action drive mechanism.
  • Only one moving part for ease of operation.

Superior IP Plate Protection:

  • No bending of the IP Plate during scanning process.
  • Guaranteed to NEVER damage Imaging Plates.
  • Scan multiple IP plates at one time.


  • Pixel/Bit Depth:  65536/16 bit source file.
  • Pixel Pitch:  25µ – 200µ and 10lp/mm.
  • Throughput:  Over 60 images per hour – mixed plate sizes.
  • Scanning Area:  14″ x 17″ Scanning Area.
  • Weight:  79 lbs (35.9 kgs.)
  • Dimensions:  L45″ x D23″ x H10″.
  • Power Source:  100-240 V AC/2.5A max/47-63Hz.
  • Light Source/Sensor Laser:  Diode/PMT.
  • Interface: USB 2.0.
  • Scanning Process:  Single Flat Path, Single Action Drive System.
  • Feed Mechanism:  Flatbed/Glass Cassette with Hard Cassette option.
  • Erase Method: Automatic LED.
  • Operating System:  Windows 7, 64-bit.
  • Conformance:  ASTM E2446 IP S/50 or EN14784-1 IP 1/50.

For further information, please email:
