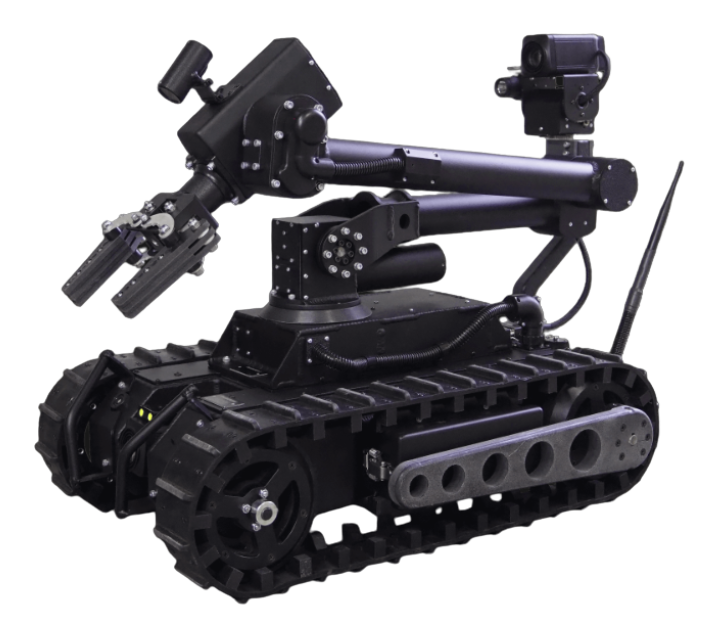

“The Bulldog” Tactical Support Robot
The LT2-F “Bulldog” Tactical Support Robot is a best-selling
tactical robot. Qualified in a grueling series of NIST tests, this tracked
robot is a perfect balance of speed, power, size, weight, and mobility.
The LT2-F Bulldog features a removable multi-axis arm!
Description
“The Bulldog” LT2-F Tactical Support Robot
The LT2-F “Bulldog” Tactical Support Robot is our best-selling tactical robot. Qualified in a grueling series of NIST tests, this tracked robot is a perfect balance of speed, power, size, weight, and mobility. The LT2-F Bulldog has all the features of our Bloodhound with the addition of a removable multi-axis arm!
The Bulldog can climb household stairs and obstacles. For more aggressive terrain and obstacles, the LT2-F has a set of rear flipper arms to lift the robot up and over. They also act as a stabilizer to prevent rollover on steep inclines. The removable multi-axis arm makes the Bulldog a versatile tool. It’s ideal for clearing rooms, removing suspicious packages, remote observation, and more! The arm is easy to remove for different missions and clearance requirements. Without the arm, the Bulldog can fit under cars, beds, and into tight spaces. With the arm installed, the robot can open doors, move and inspect objects, and look over furniture.
Features of the LT2-F
- Operation Time: Up to 8 hours
- Speed Up to 2 kmph
- Dimensions Width: 49cm / Length: 76.5cm
Height with Arm Installed (Parked): 45.75cm
(56cm with forearm camera) - Weight 38.6kg
- Shoulder rotation: 180 degrees
- Elbow rotation: 270 degrees
- Wrist rotation: Continuous
- Parallel Finger Gripper: 11.5cm opening with 29.5kg squeeze
force - Arm Payload: 6.8kgs fully extended
- Optional 5th axis: 315-degree rotating base
- Optional 6th axis: 160-degree wrist tilt
- Upgradeable to include clutches and/or feedback/position
control. - Tools that can be attached to or handled by the multi-axis
arm’s gripper for specialized operation. Examples include: - Gripper Tools – Wire cutters (secured onto gripper), Hook /
- Object Puller (held by gripper), Window Piercer (held by
gripper) - Easily removed and installed.
Controls
Operator Control Unit (OCU) – digital radio systems
providing encrypted long-range control of your robot.
Pelican case remote – features built in industrial
joysticks & 12″ tablet display.
Repeaters and Secondary Monitoring Stations.
