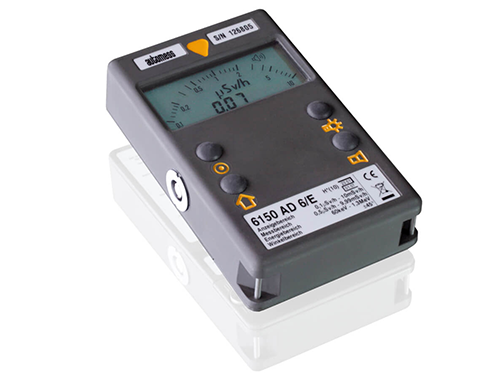

Automess Dose Rate Meters 6150 AD5 or AD6 provide universal radiation protection measuring photon radiation (gamma and x-rays) and the detection of alpha and beta radiation. Automess also provides a full range of nuclear instruments for radiation protection and monitoring.


  • Detector: GM tube ZP1300 effective length 8 mm, sensitivity approx. 100 pulses per µSv.
  • User programmable alarms thresholds: One freely programmable threshold for each dose and dose rate  (with smart models 6150AD5/6 only).
  • Analogue and digital display with automatic range selection.
  • Temperature range: -30°C to +50°C, deviation max. ±10% referred to indication at +20°C.
  • Humidity: Nominal range 60 to 130 kPa (600 to 1300 mbar)
  • Power Supply: 4.75 V out of 6150AD.
  • Battery life: Approximately 1500 hours at low dose rates with the 6150AD’s illumination off.
  • Housing:  Black anodised aluminium, waterproof. Protection class IP67 according to DIN 40050.
  • Dimensions: 26 (diameter) x 118 (length) mm.
  • Weight: Approx. 75 grams.
  • 6150AD5 has a range of 1 Sv/h
  • 6150AD6 has a range of 10 mSv/h
