CALIBRATION BLOCKS TO AS2083



Calibration block No. 7 may be used to calibrate ultrasonic testing equipment prior to ultrasonic thickness measurement.



Description

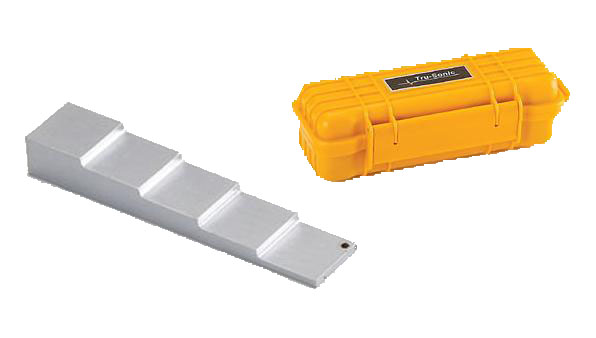

  • 4 step block with increments 2.5, 5.0, 10.0 and 20.0 mm.
  • 5 step block with increments 5.0, 10.0, 15.0, 20.0, 25.0 mm.
  • 7 step block with increments 1.0, 1.5, 2.0, 4.0, 6.0, 8.0 and 10.0 mm.
  • 7 step block with increments 3.0, 12.0, 24.0, 30.0, 36.0, 42.0, and 48.0 mm.

Step blocks are available in A1018 Carbon Steel, 304 Stainless Steel, Aluminium Alloy, Copper and Titanium.

Also available, 5 step block (curved surface).

Blocks are supplied with convenient storage case and Certificate of Conformance.

A full range of reference standards are also available on request.
