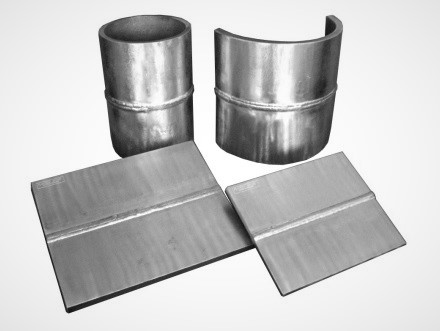

FLAWTECH UT ADVANCED SPECIMENS

FlawTech Advanced Exam Specimens are designed for:

  • Training & qualification of Level I and Level II personnel with regards to ANT-TC-1A, EN473 and PNC.
  • Flaw detection, sizing and interpretation using common weld geometries and flaw types.

Product Description

About Advanced Exam Specimens:

  • Advanced Exam Specimens are LARGER than Practical Exam Specimens.
  • Advanced Specimen tolerances +/- 0.080″.
  • Complete document package included.
  • Three real flaws per specimen, randomly placed.
  • Specimens made from carbon steel material.
  • Custom specimens available upon request.

FlawTech Advanced Exam Specimens are designed for:

  • Training & qualification of Level I and Level II personnel with regards to ANT-TC-1A, EN473 and PNC.
  • Flaw detection, sizing and interpretation using common weld geometries and flaw types.

0.5” Welded Plate w/ SV:

  • Larger than our Practical Exam Specimens.
  • 0.5″ x 12″ x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawing.
  • Custom Advanced Specimens available.

0.75” Welded Plate w/ SV:

  • Larger than our Practical Exam Specimens.
  • 0.75″ x 12″ x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawing.
  • Custom Advanced Specimens available.

1.0” Welded Plate w/ SV

  • Larger than our Practical Exam Specimens”.
  • 1.0″ x 12″ x 16″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawings.
  • Custom Advanced Specimens available.

1.25” Welded Plate w/ DV:

  • Larger than our Practical Exam Specimens.
  • 1.25″ x 12″ x 17″.
  • Material: Carbon Steel.
  • Double Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawing.
  • Custom Advanced Specimens available.

6” Sch 120 Pipe Weld:

  • Larger than our Practical Exam Specimens.
  • 6″ Sch120 (0.562″ wall) x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawings.
  • Custom Advanced Specimens available.

6” Sch XXH Pipe Weld:

  • Larger than our Practical Exam Specimens.
  • 6″ SchXXH (0.864″ wall) x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawings.
  • Custom Advanced Specimens available.

8” Sch80 Pipe Weld:

  • Larger than our Practical Exam Specimens.
  • 8″ Sch80 (0.5″ wall) x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C and CAD Drawing.
  • Custom Advanced Specimens available.

For further information please email:  ndt@ndt.com.au
