90 DEGREES CURVED SMALL

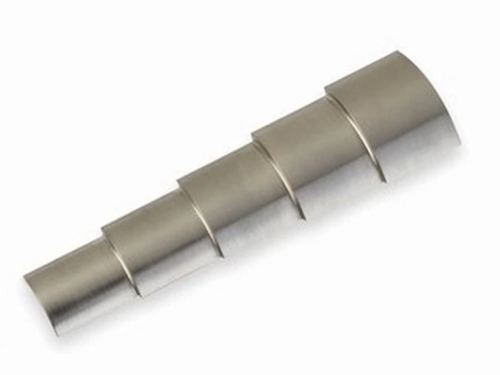

5 STEP METRIC BLOCK 90 DEGREES

For thickness and linearity calibration of curved surfaces.  This 90° Curved Metric Step Block is machined from solid 50.8 mm diameter bar.

Product Description

The block has step thicknesses of 2.5, 5.0, 7.5, 10.0 and 12.5 mm.  ID radius is a constant 12.7 mm/25.4 mm diameter. In accordance with PH Tool Drawing No. 10177.

Block Curvature:

  • 12.5 mm step is a 25.2 mm radius.
  • 10.0 mm step is a 22.7 mm radius.
  • 7.5 mm step is a 20.2 mm radius.
  • 5.0 mm step is a 17.7 mm radius.
  • 2.5 mm step is a 15.2 mm radius.
  • Step face is 25 mm x 90° arc.
  • 1018 Steel, Nickel plated.

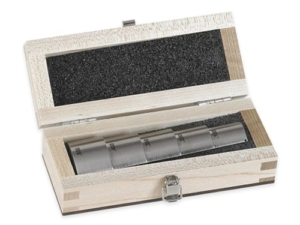

  • Fitted wooden storage case is optional.

Also available as Curved 7 step blocks:

  • 1.00 mm
  • 1.50 mm
  • 2.00 mm
  • 4.00 mm
  • 6.00 mm
  • 8.00 mm
  • 10.00 mm

Both blocks are available in A1018 Carbon Steel and 304 Stainless Steel.

For further information please email: ndt@ndt.com.au
