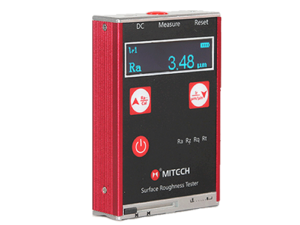

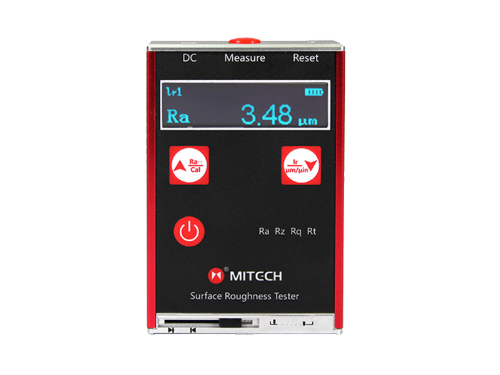

Mitech MR100 Surface Roughness Tester:

Based on the principle of needle drawing method, with an advanced sensor system and DSP technology. This high precision unit can detect surface roughness accurately. Easy to carry, reliable and used in a wide variety of surface roughness applications.


  • Measurements Parameters: Ra, Rq, Rz, Rt
  • High precision piezoelectric crystal transducer
  • Clear 128 X 32 OLED dot matrix LCD display without back light
  • DSP data processing and chip execute control
  • Lithium polymer rechargeable batteries and charging protection circuit
  • Mini-USB charging interface
  • Used on a variety of metal and non-metallic surface roughness inspection
  • Measuring range: Ra: 0.05 ~ 10.0, Rz: 0.1 ~ 50
  • Resolution Accuracy:±15%
  • Working time:8h
  • Main unit weight:200g
  • Total weight:400g
  • Dimensions:105mm×70mm×24mm

Price has been reduced to $700 + GST & delivery – Reduced by 50%

For further information, please Contact us or email:
