NDT

WILNOS WILNOLED LANGFELD FILM VIEWER

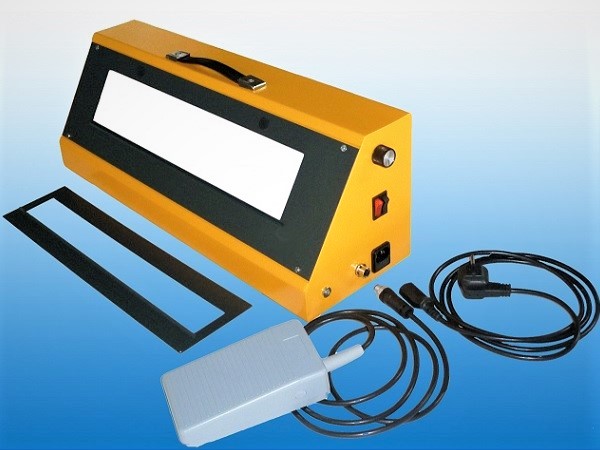

WILNOS WilnoLED LANGFELD FILM VIEWER

The Wilnoled Langfeld Film Viewer embraces LED illumination with luminance 125,000 cd/qm for film density up to D=4.1 in accordance with EN25580, ISO5580, ASTM E 1390.

Product Description

The Wilnoled Langfeld Film Viewer embraces LED illumination with luminance 125,000 cd/qm for film density up to D=4.1 in accordance with EN25580, ISO5580, ASTM E 1390.

Features:

  • The illuminated area = 445 x 85 mm with 1 additional mask for 6 cm wide films.
  • Continuous brightness control from 10 – 100%.
  • Switchable from continuous light to foot switch mode.
  • Adjustable background luminosity to avoid glare.
  • Power line cable and foot switch cable connected with plugs.
  • Electrical Data: 100-240V ~ at 50-60 Hz, 450 Watt.
  • Size: 220 x 185 x 615 mm.
  • Weight: 10 kgs. net.
  • Housing: Powder Coating.

For further information please email:  ndt@ndt.com.au
