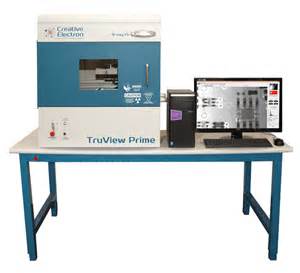

TruView PRIME BENCHTOP X-RAY INSPECTION SYSTEM

The TruView™ Prime X-Ray System, manufactured by Creative Electron, USA, offers outstanding image quality in a benchtop configuration.

Product Description

The TruView™ Prime X-Ray System, manufactured by Creative Electron, USA, offers outstanding image quality in a benchtop configuration.  The TruView™ Prime is ideal for use in Printed Circuit Board (PCB) inspection, (BGA and QFN) or semi-conductor failure analysis.

The TruView™ Prime S is the ideal parts counter system.

Technical Specifications:

  • X-ray Source:  80 kV, 90 kV or 130 kV.
  • Spot Size:  Microfocus.
  • System Resolution:  Final image resolution depends on sample.
  • X-ray Sensor:  3″ x 4″ or 5″ x 6″ (Models A,R) 14-bit flat panel.  12″ x 10″ or 17″ x 17″ (Model S) 16-bit flat panel.
  • Sample Manipulation:  Motorized or automated X,Y,Z motion.  Stage tilt and sample rotation are available as options (Models A,R).
  • System Dimensions:  31″ x 31″ x 35″ (Models A,S).  71″ x 31″ x 35″ (Model R).
  • Maximum Visible Area:  12″ x 12″ (Models A,R).  17″ x 17″ (Model S).
  • Included Software:  TruView 6 Software.  Please check TruView App Store for available applications.
  • Included Computer:  PC with Windows OS, fully networkable.
  • Safety: FDA compliant and CE certified Cabinet fully shielded with multiple interlocks, keyed start and emergency stop switch.  Certified to operate worldwide.

Configurations:

TruView™ Prime Model A:  Load and unload samples using the front door system. Motorized or automated motion system.

TruView™ Prime Model R:  Automated inspection of components in tape and reel.  A must have for component inspection and counterfeit detection.

TruView™ Prime Model S:  Source on the top of the system and a large flat panel detector on the bottom, allowing samples to lie right on top of the sensor. System is ideal for NDT applications and parts counting.
