TEST WEIGHT BAR 4.5KG

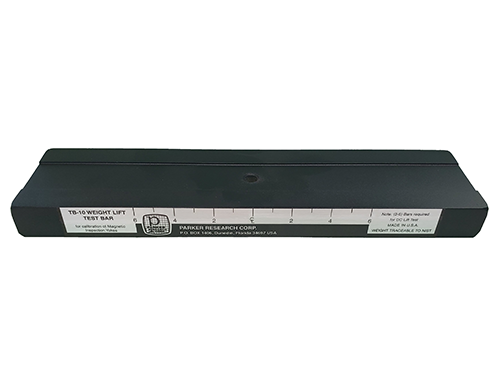

CERTIFIED TEST WEIGHT BAR 4.5KG

The Test bar is used to check the dead weight of Magnetic Particle Inspection Yokes.

Product Description

The Test bar is used to check the dead weight of Magnetic Particle Inspection Yokes.  The Test Weight Bar – Mass 4.5 kgs. +/- 0.5% is supplied with a plaque certifying weight and tolerance. The Bar complies with the following specifications:

  • MIL-STD-1949 Paragraph 5.8.5.4.
  • MIL-STD-271-E & F (SHIPS) Paragraph 4.3.1-6.2.
  • ASTM E 1444-05 Paragraph 7.3.4.
  • ASTM E VART7.
  • ASTM E709-80 Paragraph 5.2.6.

A Certificate of Conformance is supplied in accordance with AS3912.1, ANSI/NCSL-2-150-1, ISO 100012-1, BS667 and ASTM E1444-05.

These test weights have been designed to interlock together so that four blocks can be adapted to an 18 kgs. test weight for DC Yokes.

For further information please email:  ndt@ndt.com.au
