Siui CTS-9005

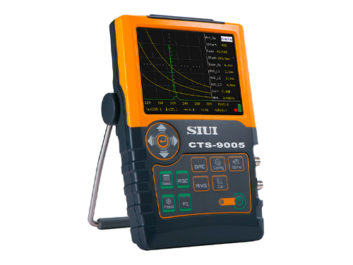

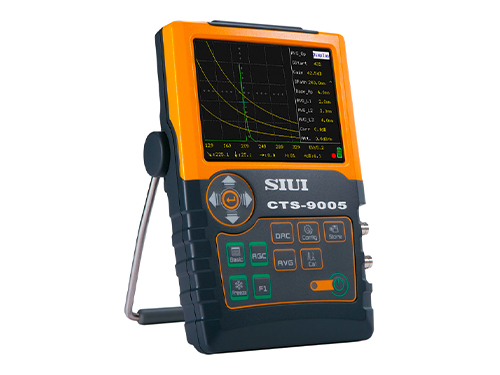

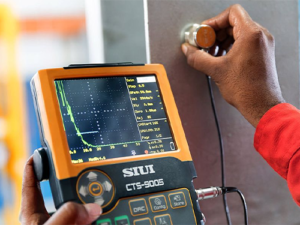

SIUI CTS-9005 DIGITAL ULTRASONIC FLAW DETECTOR

  • Eye Catching Design.
  • Complete Functions.
  • Reliable Quality.
  • Easy Operation.
  • Compact Size.
  • EN-12668-1 and ASTM E317-1 compliant.

Product Description

Portable, Easy-to-Use, Reliable – New Generation General Purpose Digital Flaw Detector.



  • Compact  & Portable:  The whole unit weight (battery included) is approximately 1.2 kgs, suitable for aloft and field work.
  • Easy Operation:  There are just a few concisely- defined keys, easy to be operated with only one hand.
  • Environmental Protection:  This system is designed based on IP65 standard, suitable for complex industrial flaw detection environment.
  • Super-low Consumption:  The configured Li-polymer battery can support up to 7-hours continuous operation.
  • Strong Performance:  High resolution and penetration, achieving precise flaw detection from thin plates to large forged pieces.

Superior Features:

  • Maximum sampling rate 240 MHz; Measurement resolution 0.1 mm.
  • Operating frequency range:  0.5~10 MHz.
  • 20-2000 Hz (step: 20 Hz): avoid reverberation signals during flaw detection.
  • The AGC (auto gain control) function for efficient flaw detection.
  • The AVG/DGS curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
  • The 5.7″color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
  • Peak memory function facilitates quick scanning and measurement on work pieces.
  • Three different color schemes can meet the requirements of different application environments and habits.
  • Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.
