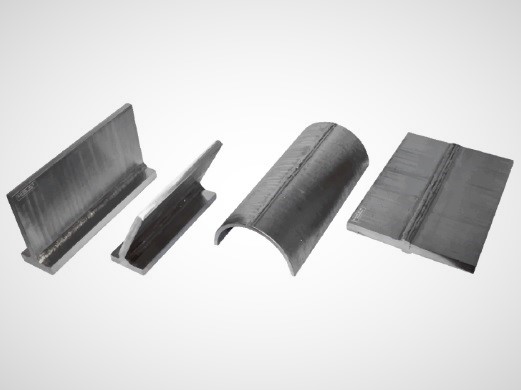

FLAWTECH RT ADVANCED SPECIMENS

Product Description

About Advanced Exam Specimens:

  • Advanced Exam Specimens are LARGER than Practical Exam Specimens.
  • Advanced Specimen tolerances +/- 0.080″.
  • Complete document package included.
  • Three real flaws per specimen, randomly placed.
  • Specimens made from carbon steel material.
  • Custom specimens available upon request.

FlawTech Advanced Exam Specimens are designed for:

  • Training & qualification of Level I and Level II personnel with regards to ANT-TC-1A, EN473 and PNC.
  • Flaw detection, sizing and interpretation using common weld geometries and flaw types.

0.375” Welded Plate w/ SV:

  • Larger than our Practical Exam Specimens.
  • 0.375″ x 12″ x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/-0.080″.
  • Document Package Includes: C of C, CAD Drawing and Radiographs.
  • Custom Advanced Specimens available.

0.625” Welded Plate w/ DV:

  • Larger than our Practical Exam Specimens.
  • 0.625″ x 12″ x 12″.
  • Material: Carbon Steel.
  • Double Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C, CAD Drawing and Radiographs.
  • Custom Advanced Specimens available.

0.75” Welded Plate w/ SV:

  • Larger than our Practical Exam Specimens.
  • 0.75″ x 12″ x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/-0.080″.
  • Document Package Includes: C of C, CAD Drawing and Radiographs.
  • Custom Advanced Specimens available.

1.0” Welded Plate w/ SV:

  • Larger than our Practical Exam Specimens.
  • 1.0″ x 12″ x 16″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/- 0.080″.
  • Document Package Includes: C of C, CAD Drawing and Radiographs.
  • Custom Advanced Specimens available.

2” Sch80 Pipe Weld:

  • Larger than our Practical Exam Specimen.s
  • 2″ Sch80 (0.218″ wall) x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/-0.080″.
  • Document Package Includes: C of C, CAD Drawing and Radiographs.
  • Custom Advanced Specimens available.

6” Sch120 Pipe Weld:

  • Larger than our Practical Exam Specimens.
  • 6″ Sch120 (0.562″ wall) x 12″.
  • Material: Carbon Steel.
  • Single Vee, as welded.
  • Flaws: 3 per specimen, randomly placed.
  • Advanced Specimen Tolerance: +/-0.080″.
  • Document Package Includes: C of C, CAD Drawing and Radiographs.
  • Custom Advanced Specimens available.

For further information please email:  ndt@ndt.com.au
