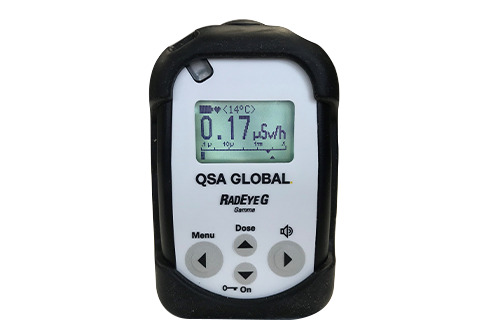

SENTINEL RADEYE G DIGITAL SURVEY METER

The Sentinel Radeye G is a combined Digital Survey Meter, Rate Alarm and Electronic Personal Dosimeter with measuring range: 0.01 mR/h to 10 R/h.

Product Description

The Sentinel Radeye G is a combined Digital Survey Meter, Rate Alarm and Electronic Personal Dosimeter with Measuring range: 0.01 mR/h to 10 R/h.

Features:

  • Rugged and Reliable.

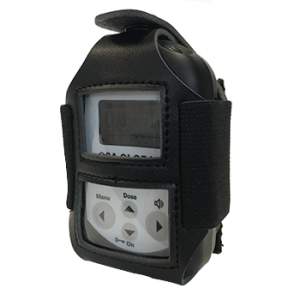

  • Durable nylon holster with belt clip.
  • Removable rubber sleeve for extra protection.
  • Water resistant.
  • Low power technology (600 hour operation).
  • Can be used with rechargable batteries.
  • Battery life indicator.
  • Large display with backlight.
  • Top alarm indication (can be operated in holster).
  • PC-Software with real-time graph.
  • 1600 data points (allows retrospective analysis).
  • Adaptable user interface Earphone output for noisy environments.
  • Alarm relay output for area monitor applications.

Digital Survey Meter:

    • Measuring range: 0.01 mR/h to 10 R/h (0.1 µSv/h to 100 mSv/h).
    • Overload indication: 10 R/h up to 1000 R/h (100 mSv/h up to 10 Sv/h).
    • Energy range: 45 keV-1.3MeV.
    • Energy compensated GM Tube.

 Rate Alarm:

  • Two programmable alarm thresholds for dose and dose rate.
  • Selectable anywhere from 0.01 mR/h to 9999 mR/h.
  • Audible, visual and vibrating alerts (Earphone optional) .

Electronic Personal Dosimeter:

  • Records mean/max dose rate.
  • Records accumulated dose.
  • PC-Software for data analysis and instrument (optional).
  • Audible, visual and vibrating alerts (Earphone optional).

Software:

All settings and the data analysis can be done by an optional WindowsTM based PC-software and an accompanying reader device.
