PHOENIX ISL MapMan MANUAL CORROSION PIPE/VESSEL SCANNER

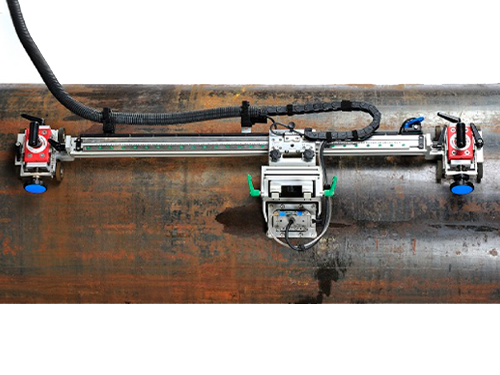

The MapMan is a modular two axis scanner for corrosion mapping. It is available with magnetic wheels for inspecting steel pipes and vessels ideal for use with linear phased array transducers including HydroFORM, WheelProbe, and standard 0° wedges.

Product Description

The MapMan is a modular two axis scanner for corrosion mapping. It is available with magnetic wheels for inspecting steel pipes and vessels ideal for use with linear phased array transducers including HydroFORM, WheelProbe, and standard 0°

This two axis manual scanner is a fast, portable system for performing C-scan inspection (such as corrosion mapping) on pipes and vessels. The MapMan is compatible with any transducer and is especially effective when combined with linear array sensors for rapid area coverage. The MapMan can be used on 4” pipes up to flat plate.

The MapMan is a modular two axis scanner that is ideal for corrosion mapping. It is available with magnetic wheels for inspecting steel pipes and vessels or alternatively belts for inspecting pipes of any other material.

Transducer holders are available for the MapMan to mount one of several existing linear array sensors including HydroFORM, WheelProbe, as well as standard 0° wedges. The axial rail can be supplied with fixed step locking positions so that the transducer can be very quickly incremented whilst guaranteeing data overlap to ensure that all areas have been inspected

Features:

  • Dual axis encoding.
  • Magnetic wheels for stability.
  • Increment rail with pre-defined grooves.
  • For use on components from 100mm (4”) outside diameter through to flat.
  • Maximum stroke inspection up to 550 mm.
  • Weight: 3 kgs. – 5 kgs. (dependent on configuration).
  • Encoder resolution: X = 8 steps/mm Y = 1000 steps/mm.
  • Encoder connector: Any.

For further information please email:  ndt@ndt.com.au
