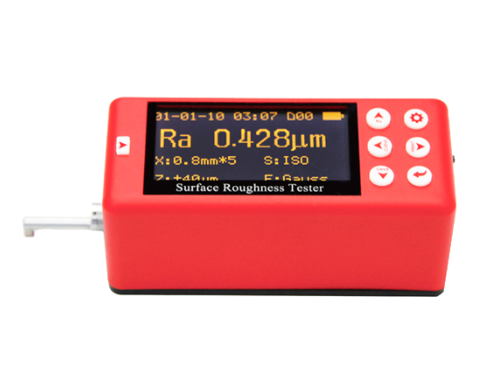

MITECH MR200 SURFACE ROUGHNESS TESTER

MITECH MR200 SURFACE ROUGHNESS TESTER

The MR200 Surface Roughness Tester is an efficient, accurate and portable unit for a wide range of applications.

Product Description

The Mitech MR200 Surface Roughness Tester is an efficient, accurate and portable unit for a wide range of applications. It is capable of evaluating surface roughness within a variety of parameters, with results displayed on the LCD screen, or communicated with PC or optional printer.

Features:

  • 15 parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rz(JIS), Ry(JIS), RSk, R3z, Rmax, RPc, Rmr.
  • High accuracy inductance pickup.
  • Four filtering methods of RC, PC-RC, GAUSS and D-P.
  • Compatible with four standards of ISO, DIN, ANSI and JIS.
  • Can store 15 sets of measurement results.
  • 128×64 dot matrix LCD displays all parameters and graphs.
  • DSP chip is used to control and process data with high speed and low power consumption.
  • Built-in lithium ion re-chargeable battery. Consecutive work time is longer than 20 hours.
  • Design of mechanical and electrical integration is adopted to achieve small bulk, light weight and easy usage.
  • Can be connected to printer to print all parameters and graphs.
  • Built-in standard RS232 interface enables communication with PC.
  • Automatic switch off.
  • Optional printer, analysis software and measurement platform.

 Specifications:

Name Content
Measuring range: Z AxisVertical 160 μm.
X AxisHorizontal 17.5 mm.
Resolution: Z AxisVertical 001 μm/±20 μm.
002 μm/±40 μm.
004 μm/±80 μm.
Measurement item: Parameters Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rz(JIS), Ry(JIS), RSk, R3z, Rmax, Rpc, Rmr.
Standard ISO, ANSI, DIN, JIS.
Graphic Roughness profileMaterial ratio curveDirect profile.
Filter: RC, PC-RC, Gauss, D-P.
Sampling length (lr): 0.25, 0.8, 2.5 mm.
Assessment length ln): Ln= lr×n    n=1~5.
Pickup: principle: Differential inductance.
Stylus: Natural Diamond, 90B cone angle, 5μm tip radius.
Force: <4mN.
Skid: RubyLongitudinal radius 40 mm.
Traversing speed: lr=0.25,   Vt=0.135 mm/s.
lr=0.8,    Vt=0. 5 mm/s.
lr=2. 5,    Vt=1 mm/s.
Return      Vt=1 mm/s.
Accuracy: Less than or equal to ±10%.
Repeatability: Less than or equal to 6%.
Power supply: Built-in Lithium ion batteryAC adapter 8.4 V,800 mA.
L×W×H: 119×47×65 mm.
Mass: Approximately 380 grams.



 For further information please email:  ndt@ndt.com.au
