MITECH MH100 PEN-TYPE HARDNESS TESTER

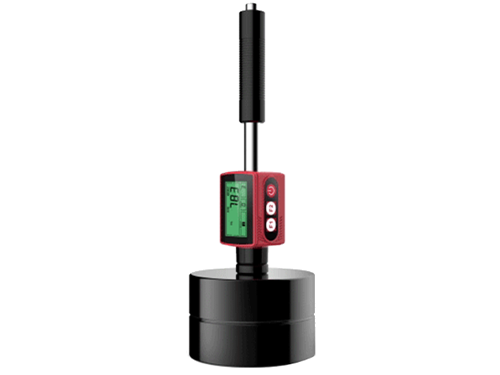

MITECH MH100 PEN-TYPE LEEB HARDNESS TESTER

Utilising the Leeb Hardness measuring principle, the MH100 pen-type hardness tester from Mitech can perform tests easily and quickly on various metallic materials.

Product Description

Utilising the Leeb Hardness measuring principle, the MH100 pen-type hardness tester from Mitech can perform tests easily and quickly on various metallic materials. It can show the hardness measuring value immediately and can switch to other scales freely.

Specifications:

  • Measuring Range: (170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13 -100)HRB.
  • Measuring Direction Support 0~360º.
  • Hardness ScalesHL, HB, HRB, HRC, HRA, HV, HS.
  • DisplayHD dox matrix LCD and LED backlight.
  • Data MemoryMax. 500 groupsrelative to impact device 321).
  • Working Power3.6VIntegrated lithium battery  and re-chargeable circuit).
  • Continuous Working Periodapprox 200 hours without using back-light).
  • Communication InterfaceUSB 1.1 port.

Applicable Materials:

Steel and cast steel, cold work tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminum alloys, brass (copper-zinc alloys), bronze (copper-aluminum/tin alloys), pure copper and forged steel.

Working Conditions:

  • Operating temperature: -20℃~+60℃.
  • Storage temperature-30℃~+60℃.
  • Relative humidity: ≤90%.

The surrounding environment should be free of vibration, strong magnetic fields, corrosive mediums and heavy dust.

Standard Configuration:

  • D impact device.
  • Main Unit.
  • Cleaning brush.
  • Small support ring.
  • Standard block.
  • Data processing software with cable.
  • Operating Manual.
  • Warranty Card.
  • ABS instrument case.

Optional Configuration:

  •  C, DL Impact Device.

For further information please email: ndt@ndt.com.au
