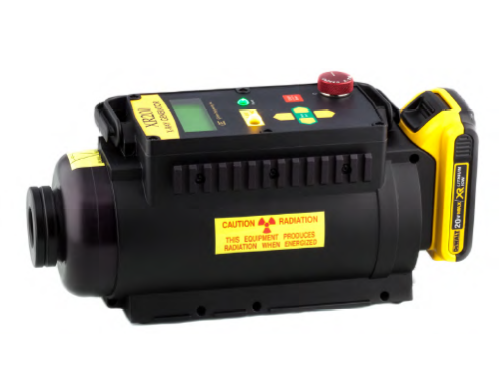

GOLDEN ENGINEERING XR200 PULSED X-RAY GENERATOR

The Golden Engineering XR200 pulsed x-ray generator is designed for simple, convenient field operations and is compatible with CR and DR technology.

Product Description

The Golden Engineering XR200 pulsed x-ray generator is designed for simple, convenient field operations and is compatible with CR and DR technology.

Features:

  • Maximum 150 kVp.
  • Field replaceable tube.
  • 18W DeWalt battery.
  • Simple variable pulse setting.
  • Removable tripod mount.
  • 20 ft stand-off distance behind the unit.

Specifications:

  • Power: DeWalt DC9096 Battery.
  • Weight: 5.91 kgs.
  • Output Dose: 3.1 mR/pulse min, measured 12″ from source.
  • Pulse rate: 15 pulses per second.
  • Source size: 3 mm.
  • Max Photon energy: 150 kVp.
  • Pulse width: 60 nanoseconds.
  • Beam angle: 40 degree standard.
  • Current draw: 35 amps.
  • Max duty cycle: 200 pulses per 4 minutes.

Golden Engineering XR200 pulsed x-ray generator

For further information please email: ndt@ndt.com.au
