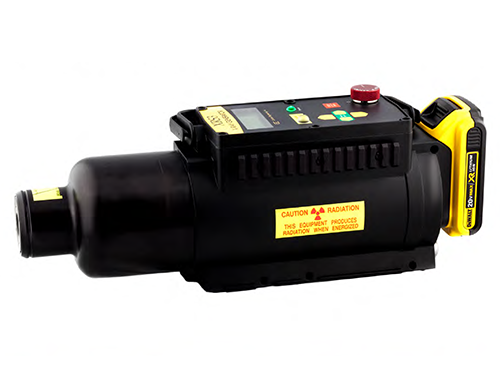

GOLDEN ENGINEERING XRS3 PULSED X-RAY GENERATOR

The Golden Engineering XRS3RA pulsed x-ray generator is a 270 kVp light duty pulsed x-ray machine. It is designed for simple, convenient field operations and is compatible with CR and DR technology.

Product Description

The Golden Engineering XRS3RA pulsed x-ray generator is a 270 kVp light duty pulsed x-ray machine. It is designed for simple, convenient field operations and is compatible with CR and DR technology.

Features:

  • Maximum 270 kVp.
  • Water resistant housing.
  • 18V DeWalt Battery.
  • Simple variable pulse setting.
  • Removable tripod mount.
  • 20 ft stand-off distance behind the unit.
  • Contains no hazardous material.
  • Highly portable.
  • Compatible with CR and DR digital technology.

Specifications:

  • Power: DeWalt DC9096 battery.
  • Weight: 5.91 kg including battery.
  • Output Dose: 2.7 mR/pulse min, measured 12″ from source.
  • Pulse rate: 15 pulses per second.
  • Source size: 3mm.
  • Max Photon energy: 270 kVp.
  • Pulse width: 25 nanoseconds.
  • Beam angle: 40 degrees standard, 60 degrees available.
  • Current draw: 20 amps.
  • Max duty cycle: 200 pulses per 4 minutes.
