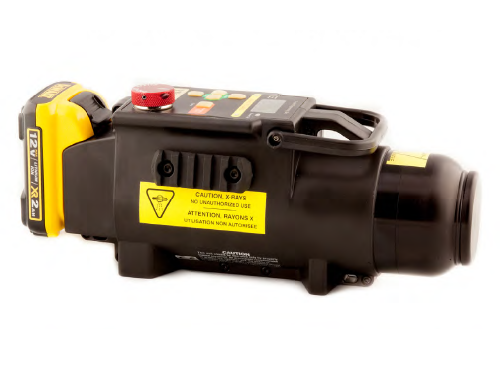

GOLDEN ENGINEERING XR150 X-RAY GENERATOR

The re-designed Golden Engineering XR150 pulsed x-ray generator features a 16 character LCD display, menu based interface and is powered by a DeWalt 12V Li-Ion battery.  It is highly portable, weighing in at 2.13 kg, including the battery.

Product Description

GOLDEN ENGINEERING XR150 X-RAY GENERATOR

The re-designed Golden Engineering XR150 pulsed x-ray generator features a 16 character LCD display, menu based interface and is powered by a DeWalt 12V Li-Ion battery.  It is highly portable, weighing in at 2.13 kgs, including the battery.

Features:

  • Pulse Settings up to 999 counts.
  • Program countdown delay timing (5 – 240 seconds).
  • Set multiple pulse trains.
  • Records total life pulses on source.
  • Resettable pulse tracker.
  • Select 1 or 3 pulses per count in software.
  • Variable pulse rate (1 pulse per second or slower).
  • Threaded insert for tripod mount.
  • Tie off points for custom handles and fasteners.

Specifications:

  • Power: DeWalt DC127 12v Li-Ion Battery.
  • Weight: 2.13 kgs.
  • Output Dose: 3.1 mR/pulse min, measured 12″ from source.
  • Pulse rate: 4 counts per second.
  • Source size: 3 mm.
  • Max Photon energy: 150 kVp.
  • Pulse width: 50 nanoseconds.
  • Beam angle: 40 degree standard.
  • Current draw: 6.8 amps.
  • Max duty cycle: 100 counts (300 pulses) per 4 minutes.



For further information please email: ndt@ndt.com.au
