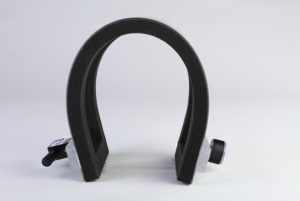

FLEXIBLE VACUUM BOXES

Flexible Vacuum Boxes are manufactured to a high degree of quality in the USA, and use a venturi system driven by compressed air to create the vacuum.

Product Description

Flexible Vacuum Boxes are manufactured to a high degree of quality in the USA, and use a venturi system driven by compressed air to create the vacuum. This method of operation is consistently reliable, as there are no moving parts. Furthermore, the venturi can operate effectively with as little as 4 cubic feet per minute of air flow, allowing portable air compressors to be used as a source of compressed air (if required).

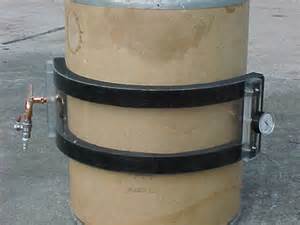

Flexible vacuum boxes are specifically designed for testing of curved surfaces (e.g. pipes or tank walls) with a minimum diameter of 36’. They cannot be used on flat or near flat surfaces. Each box is shipped with the hardware to immediately begin testing when connected to an air source.

Specifications:

  • Standard Size: 30″.
  • Outside Dimensions: 30” L x 7 ½” W x 1.5/8” H.
  • Viewing Area: 26 7/8” L x 4 ½” W.

For further information please email:  ndt@ndt.com.au
