NDT

ELOTEST B300

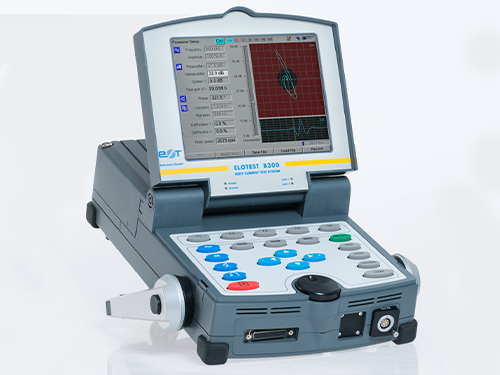

ROHMANN EloTest B300 EDDY CURRENT SERIES TESTERS

The EloTest B300 range of eddy current testers are manufactured by Rohmann, Germany.

Product Description

As the successor of the EloTest B1 the EloTest B300 opens new future-oriented dimensions. The B1’s proven eddy-current technology and the latest software and hardware components have been combined into a powerful instrument that may be used with or without an external computer. Additional software (e. g. ScanAlyzer) further expands the already excellent features of the B300 series.

The new ergonomic and sturdily designed housing does not only offer a generously sized user panel (Display and keypad), but also maximum protection against jolts and vibrations.

Features:

  • Automatic probe adaption.
  • Automatic pre-amplifier adjustment (incl. HF-compensation for maximum pre-amplification).
  • Automatic lift-off adjustment.
  • Automatic mix function for multi-frequency applications.
  • Waterfall-display for dynamic inspections.

Software:

  • C-scan software.
  • Conductivity measurement (with calibrated special probes).
  • Layer-thickness measurement (with calibrated special probes).
  • Probe array multiplex (with optional additional hardware).

Instrument Versions:

EloTest B310: 1-channel test instrument compatible with the EloTest B1 V3/V4 with regards to probes/rotors.

EloTest B320: 2-channel version with 2 independent test channels that can be configured as master/slave channel; 3 signal mix channels.

EloTest B330:  3-channel version with 3 independent test channels that can be configured as master/slave channel; 3 signal mix channels.

EloTest B340:  4-channel version with 4 independent test channels that can be configured as master/slave channel; 3 signal mix channels.

For further information please email:  ndt@ndt.com.au
