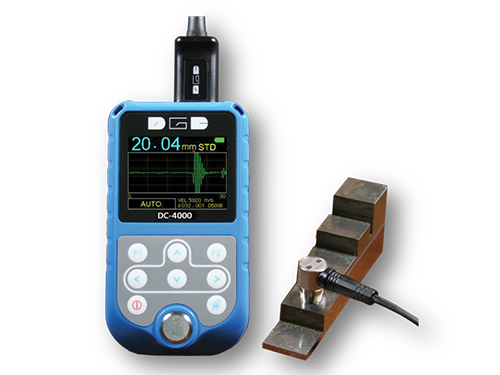

DC-4000 Ultrasonic Thickness Gauge

DC-4000 ULTRASONIC THICKNESS GAUGE

  • A Scan and B Scan.
  • Suitable for fiberglass and composite materials.
  • Large memory to 10,000 data and data transfer with software included.





Product Description

Features:

  • 320 x 240 TFT colour screen.
  • Measuring Mode:  (P-E) pulse-echo and (E-E) thru paint.
  • A scan and B scan.
  • Auto probe zero calibration.
  • Auto probe identification.
  • Measuring  Range:  P-E 0.65-400 mm.  E-E 3.00-25.0 mm.
  • Options in Range: Gain, Delay, Gate Blank and E-Blank settings.
  • Standard 5.0 MHz transducer included with optional transducers available.
  • Display resolution:  0.01 mm/0.001″.
  • Memory of 10,000 readings in 100 files.
  • USB Output:  easily works with any Windows operating system 32 bit and 64 bit.
  • Multiple languages support.
  • Weight:  260 grams.
  • Size:  133 (L) x 75 (W) x 29 (H) mm.  5.2″ (L) x 3″ (W) x 1.1″ (H).
  • Two years warranty.

Certification:

  • Factory calibration traceable to ASTM E0797-05.

For further information please email:  ndt@ndt.com.au
