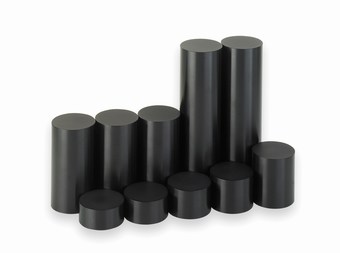

ASTM DISTANCE/AREA AMPLITUDE SET OF 10, 7075-T6 ALUMINIUM

Basic set of ten flat bottom hole blocks used to determine dead zone, sensitivity, distance and area amplitude linearity measurements.

Product Description

In accordance with ASTM E127.  Includes NIST traceable dimensional certification report, ultrasonic inspection report and two response plots and the certified material test report.

  • Dimensions: 3/64″at 3.000″ MTD; 5/64″ at .125″, .250″, .500″, .750″, 1.500″, 3.000″ and 6.000″ MTD; and 8/64″ at 3.000″ and 6.000″ MTD.  Block diameter is 2.0″.
  • Made from 7075-T6 Aluminium, black anodised.
  • Hardwood or Durable Plastic Cases are recommended.

Also available in 4340 Steel, Type 304 Stainless Steel and Special Alloy.

For further information please email: ndt@ndt.com.au
