ASTM AREA AMPLITUDE SET

ASTM AREA AMPLITUDE SET OF 8, SPECIAL ALLOY

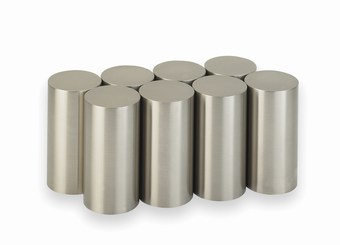

ASTM Special Alloy Area Amplitude Set of 8 flat bottom hole blocks used to determine the relationship between flaw size and echo amplitude by comparing signal responses.

Product Description

Metal travel distance is 3.000″ for all blocks and FBH diameter ranges from #1 (1/64″ to#8 (8/64″).  In accordance with ASTM E428.  Includes NIST traceable dimensional certification report, ultrasonic inspection report, response plot and certified material test report.   A 5.0 MHz quartz transducer for block characterization is required by ASTM E127, Section 11.

  • Dimensions:  FBH diameters are 1/64″, 2/64″, 3/64″, 4/64″, 5/64″, 6/64″, 7/64″, and 8/64″.  Block diameter is 2.0″.
  • Blocks are manufactured from 6AL-4V Titanium.
  • The manufacturer recommends a hardwood or durable plastic case.

These blocks are also available in 7075-T6 Aluminium, 4340 Steel and Type 304 Stainless Steel.

For further information please email: ndt@ndt.com.au
