AUTOMESS 6150AD-b SCINTILLATOR PROBE

The scintillator sample 6150AD-b is a portable PTB approved test for the dose rate meter to measure photon radiation 6150AD (gamma and X-radiation).

Product Description

AUTOMESS 6150AD-b SCINTILLATOR PROBE

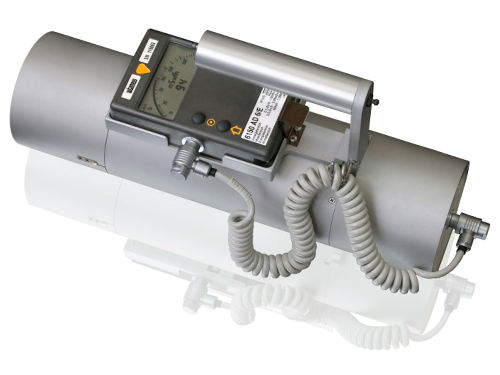

The scintillator sample 6150AD-b is a portable PTB approved test for the dose rate meter to measure photon radiation 6150AD (gamma and X-radiation). A cylindrical three by three inches organic scintillator serves as the radiation detector. The advantage of the Scintillator Probe is its wide energy range and its high sensitivity. The Scintillator Probe is thus, particularly well suited, for fast and accurate measurements of low radiation levels down to or even below natural background.The “b” in 6150AD-b means “background”. Other applications are measurement of scattered radiation and measurements around CRTs (cathode ray tubes) or other sources of X-rays.

The probe is available for either the classical Hx or the more modern quantity  H * (10). The latter version is given the extension “H” to its type name.

The Scintillator Probe 6150AD-b(/H) requires the smart models 6150AD5(/H) or 6150AD6(/H) as basic meters. Power supply comes from the 6150AD basic meter through the probe cable.

Hx model: 6150AD-b
H*(10) model: 6150AD-b/H

  • Analogue range: 10 nSv/h – 100 µSv/h.
  • Digital range: 1 nSv/h – 99.99 µSv/h.
  • Approved range: 100 nSv/h – 100 µSv/h.
  • Energy range: 6150AD-b: 23 keV – 7 MeV.
  • Energy range: 6150AD-b/H: 20 keV – 7 MeV.

For further information please email: ndt@ndt.com.au
